Description

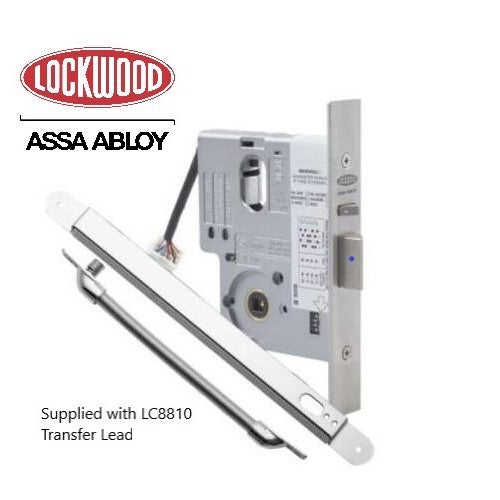

Lockwood 3570 series electric mortice lock. Less cylinder. Includes LWLC8810 cable transfer.
Suitable for commercial applications.
Monitoring includes dual key override, dead latching, door closed, door locked, request to exit, and reed switch.
The lock can be operated by push buttons, intercom systems, and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.
| Voltage | 12Vdc - 24Vdc Operating Voltage |
| Current | 500mA (max) 80mA holding @ 12Vdc. 275mA (max) 50mA holding @ 24Vdc. |
| LED Current | When LED's are fitted, add 15mA (max) to total current draw |
| Environment | Operational temperature range -20c to + 60c. |
| Case / Cover | High purity Zinc alloy construction |
| Backset | 60mm standard, 89 & 127 mm available |
| Latch bolts | Reversible with Stainless Steel construction |
| Door Clearance | 3 - 6.5 mm |
| Door thickness | Standard applications 32 to 50mm |
| Cylinder | Standard Lockwood oval shaped cylinders |
| Cabling | 1.6 metre length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm²) cable runs up to 30m |
| Furniture | Compatible with Lockwood series door furniture |
