Description

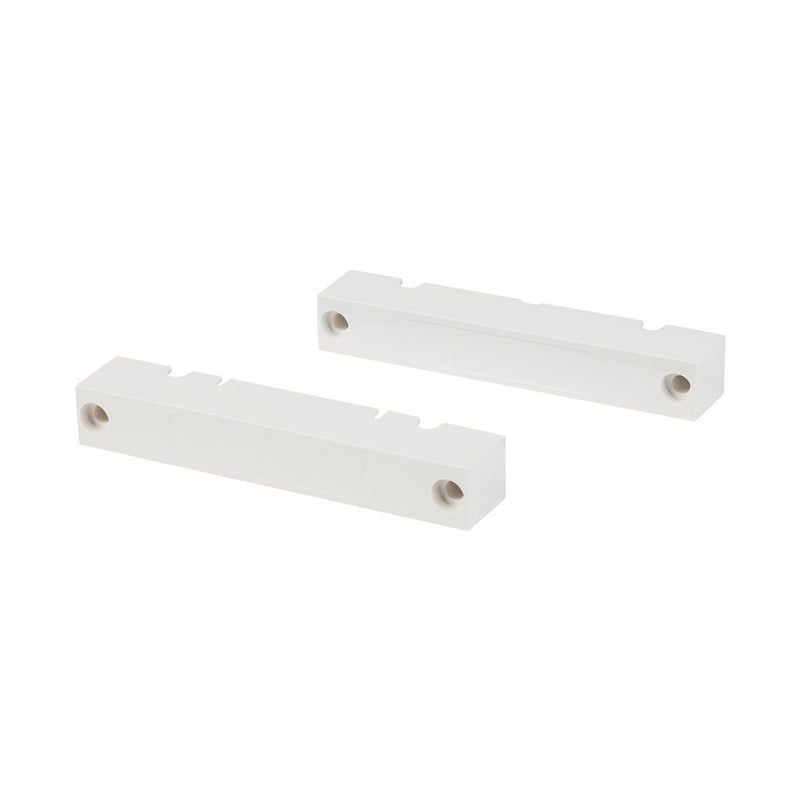

The ARITECH S2537 Reed Switch is a high-quality, normally closed (NC) magnetic contact designed for security applications. With a 76mm wide gap, this surface mount sensor is ideal for industrial and commercial use, offering fast installation and reliable performance even on steel doors. Its rugged design and concealed screw terminals provide both durability and protection against tampering or accidental shorts. Featuring wide-gap tolerance and external test points, it helps reduce false alarms and simplifies system maintenance.
Features
- Designed for industrial-grade security applications
- Wide gap tolerance for faster installation and fewer false alarms
- Normally closed (NC) contact type
- Concealed screw terminals for tamper protection
- External test points for easy system testing
- Reduces false alarms on loose-fitting or misaligned doors
- Suitable for use on steel surfaces without extra brackets
Specifications
| Brand | ARITECH |
| Type | Reed Switch (Surface Mount) |
| Color | White |
| Material | Durable housing for industrial use |
| Model | S2537 |
| Dimensions | Standard surface mount size |
| Contact Type | Normally Closed (NC) |
| Gap Distance | 76mm |
| Mounting | Screw mount |
| Compatibility | Ideal for doors and windows, especially steel surfaces |
| Warranty | 2 years |
