Description

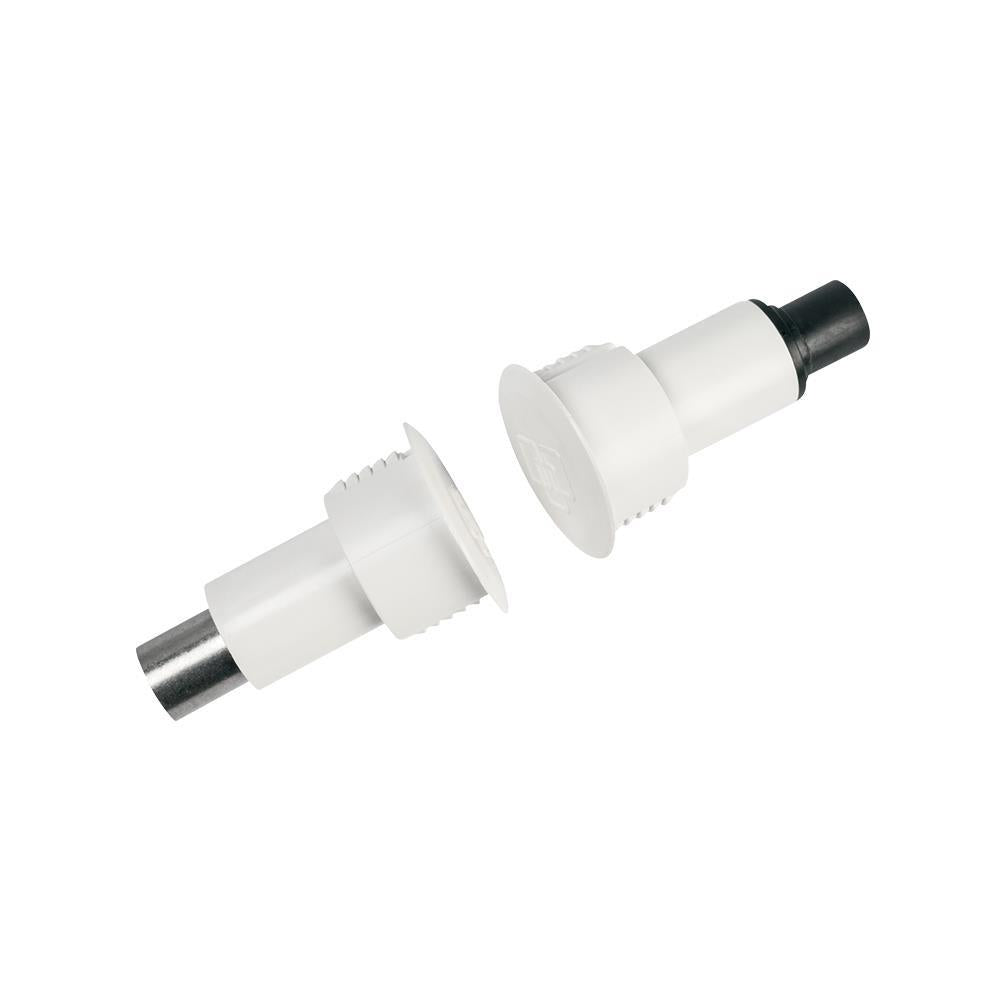

The ARITECH S2569 Reed Switch is a robust, normally closed (NC) magnetic contact designed specifically for steel door installations in commercial environments. Featuring a compact 25.4mm x 25.4mm design, this switch provides reliable performance thanks to its rugged unibody construction and flexible ribbed sides that ensure a secure fit without the need for glue. Engineered for use in steel doors, the magnet housing isolates the magnet for optimal make and break distances. This makes the S2569 ideal for high-traffic or high-security installations where reliability and false alarm prevention are critical.
Features
- Engineered for steel doors in commercial applications
- Compact, square design with 25.4mm gap distance
- Normally closed (NC) contact type
- Rugged unibody construction for enhanced durability
- Flexible ribbed sides for tool-free, secure installation
- Magnet housing isolates magnet from steel for reliable operation
- Terminal connection model for easy wiring
- Designed to reduce false alarms and simplify setup
Specifications
| Brand | ARITECH |
| Type | Reed Switch for Steel Doors |
| Color | White |
| Material | Rugged plastic housing |
| Model | S2569 |
| Dimensions | 25.4 mm x 25.4 mm |
| Contact Type | Normally Closed (NC) |
| Gap Distance | 25.4 mm |
| Mounting | Press-fit with ribbed sides (no glue required) |
| Compatibility | Steel doors and commercial entry points |
| Warranty | 2 years |
