Description

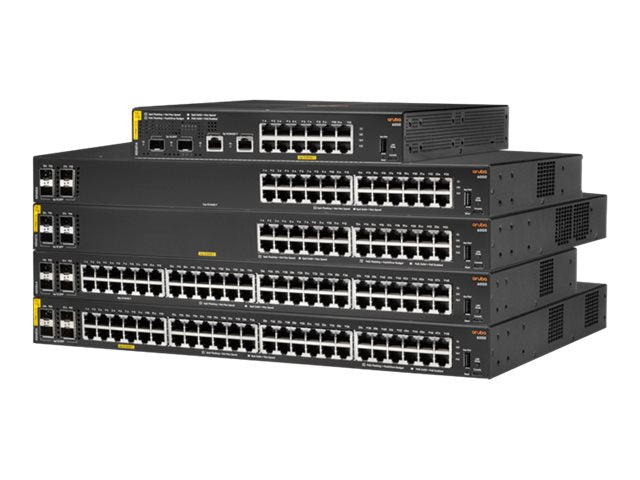

The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces.
The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty.
| Product Description | HPE Aruba 6000 48G Class4 PoE 4SFP 370W Switch - switch - 48 ports - Managed - rack-mountable |
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 370 W |
| Performance | Packet buffer size: 12.38 MB ? Throughput: 77.3 Mpps ? Switching capacity: 104 Gbps ? Latency (1 Gbps): 1.9 ?s |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | IGMPv2, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.2 cm x 30.48 cm x 4.39 cm |
