Aruba Instant On 1930 switches are advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high performance networking that is easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports 10 active ports -- eight 10/100/1000 copper Ethernet RJ45 ports and two 1-Gigabit SFP-style uplink slots. Power over Ethernet both PoE and PoE+ can operate on any of its eight RJ45 ports, with a total PoE budget of 124 Watts.
Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty.

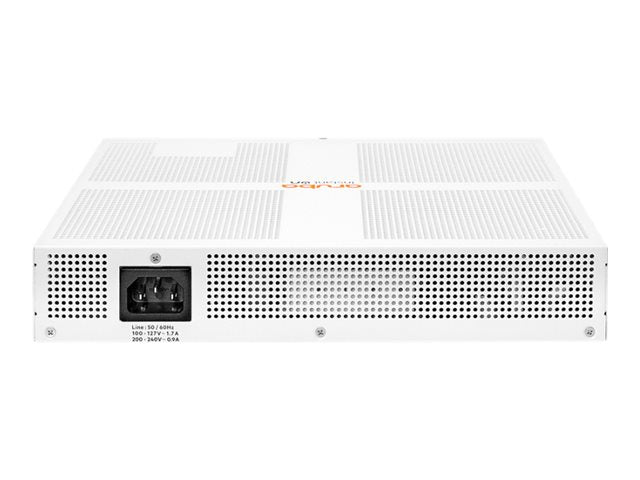

Product Description | HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 8 ports - Managed - rack-mountable |
Device Type | Switch - 8 ports - L2+ - Managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 124 W |
Performance | Throughput: 14.88 Mpps ? Switching capacity: 20 Gbps ? Latency (100 Mbps): 5.2 ?s ? Latency (1 Gbps): 3 ?s |
Capacity | Routing table entries (static): 32 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMPv2, IGMP, static IPv4 routing, MSTP, RSTP, STP |
Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, DHCP, IPv4, IPv6 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 25.4 cm x 15.95 cm x 4.39 cm |
