Description
The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications.
- Simplify Network Deployment and Management for Small Organizations
- Keep Your Business Protected with Integrated Security Features
- Deliver High Performance

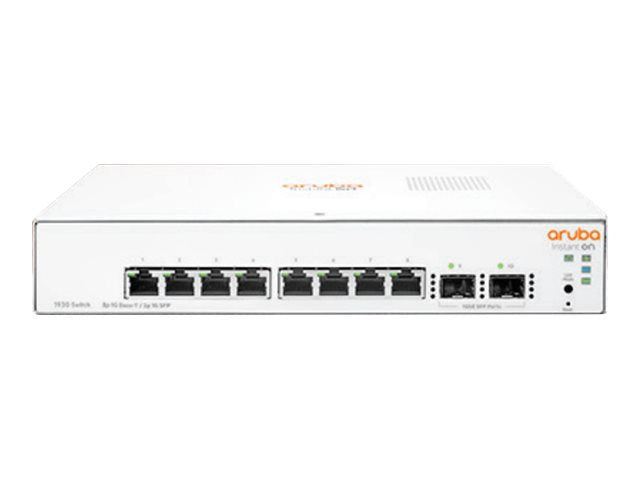

| Product Description | HPE Aruba Instant On 1930 8G 2SFP Switch - switch - 10 ports - Managed |
| Device Type | Switch - 10 ports - L3 - Managed |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching capacity: 20 Gbps ? Throughput: 14.88 Mpps ? Latency (100 Mbps): 5.2 ?s ? Latency (1 Gbps): 3 ?s |
| Capacity | Link aggregation ports: 8 ? IPv4 routes (static): 32 ? VLANs supported: 256 ? Access Control Entries (ACEs) per ACL: 480 ? Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 25.4 cm x 15.95 cm x 4.39 cm |
