Description

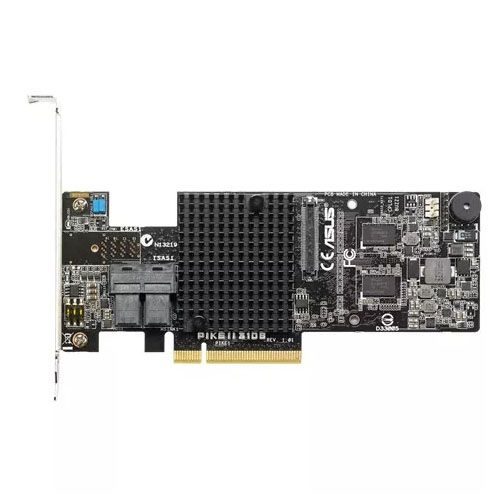

The Asus Cache Vault Accessory CACHEVAULT-3108-2G SAS 12Gb/s Storage Solution with 8 Internal Ports is the latest 12Gb/s SAS and PCI-E 3.0 high-reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data protection. Placing the PIKE card can immediately enlarge the capacity and improve performance, making it a great upgrade option.
• PCI-E x8 interface
• Internal mini-SAS HD connectors
• Switch (for more than one card)
• HBLED1(HEARTBEAT LED): The LED shows the firmware heartbeat information.(blinking)
• DRLED1(Dirty cache LED): Write Pending(light)
• FAILLED1(Global Drive Fault LED): Drive Fault Detected(light)
• CacheVault connector
| Controller | Broadcom (LSI) SAS3108 |
| Host Interface | PCIe 3.0 x8 |
| Ports | 8 internal ports by 2 Mini-SAS HD connectors |
| RAID Level Supported | 0, 1, 10, 5, 6, 50, 60 |
| Devices Supported | SATA Devices and SAS Devices |
| Data Transfer Rate | - Max. SAS 12Gb/s - Max. SATA 6Gb/s |
| Embedded Memory | 2GB DDR3 |
| JBOD Mode | Yes |
| Cache Protection | Optional LSI CacheVault 2G |
| Form Factor | Low-profile Card |
| Dimensions | 6.6 x 2.71 Inch |
