Description

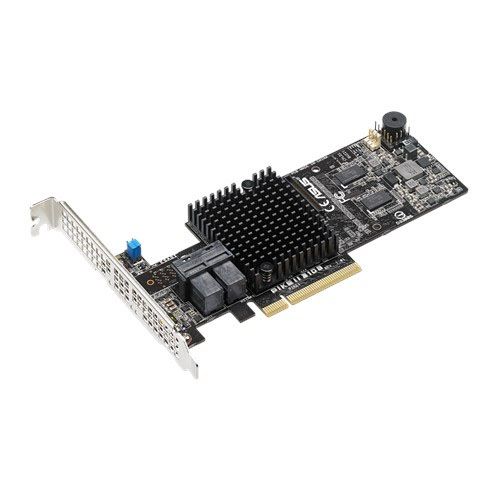

The ASUS PIKE II 3108-8I/16PD SAS 12 Gb/s Storage Solution with 8 Internal Ports PIKEII3108-8I-16PD-1G supports 6 Gb/s SATA and 12 Gb/s SAS storage and has an integrated RAID 0/1/10/5/6/50/60 for data protection. The PIKE card can enlarge capacity, improve performance, and strengthen the signaling, making it an optimal upgrade option.
• PCIe x8 Interface
• SAS 12 Gb/s Data Rate
• Supports SAS & SATA Hard Disk Drives
• Supports RAID 0/1/10/5/6/50/60
• LSI SAS 3108 Chipset
• 6.60 x 2.71" Form Factor
• Heartbeat & Activity LED
• Windows & Linux OS Compatible
| Product Type | Controller Cards |
| Form Factor | 6.60 x 2.71" (16.76 x 6.88 cm) |
| Interface | PCIe Gen 3 |
| Chipset | LSI SAS 3108 |
| Data Rate | SAS 12 Gb/s |
| Cache | 1 GB on board SDRAM |
| Battery Backup | Header reserved for LSI CacheVault (acquired from LSI existing distribution channel) |
| RAID Levels | RAID 0/1/10/5/6/50/60 |
| Ports | 8 |
| Connectors | Internal mini-SAS HD connectors |
| Operating System | Windows & Linux OS compatible |
