Description

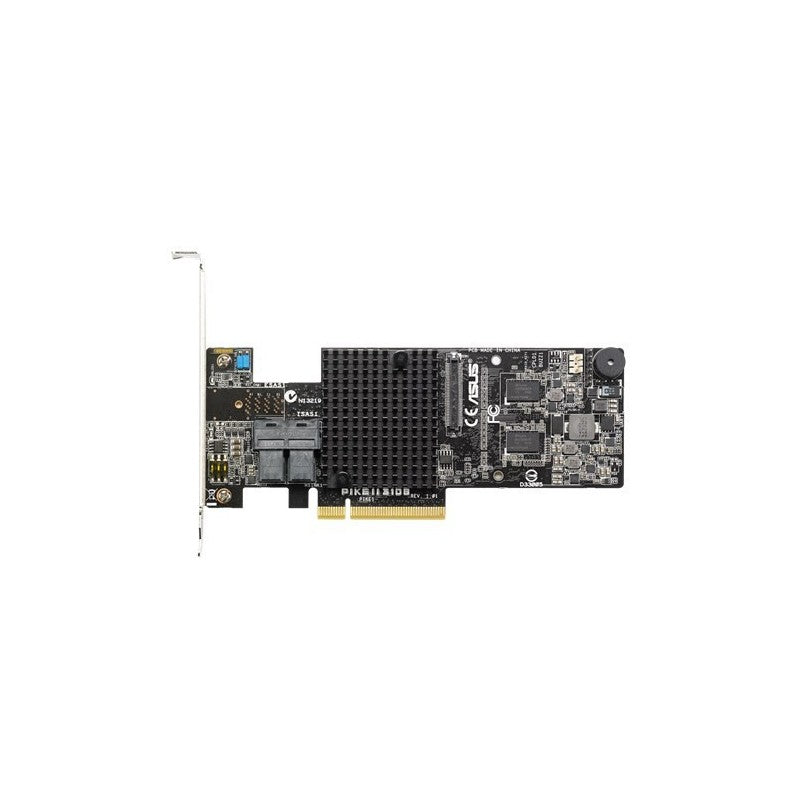

ASUS PIKE II 3108-8i/16PD/2G (Max. Physical Disk Qty for RAID: 16) is the latest 12Gb/s SAS and PCI-E 3.0 high-reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data protection. Placing the PIKE card can immediately enlarge the capacity and improve performance, making it a great upgrade option.
| Supported storage drive interfaces | SAS, Serial ATA, Serial ATA II, Serial ATA III |
| Host interface | PCI Express x2 |
| PCI Express slots version | 3.0 |
| Internal mini-SAS ports | 2 |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Data transfer rate | 12 Gbit/s |
| Chipset | LSI SAS 3108 |
| Width | 152.4 mm |
| Height | 50.8 mm |
