Description

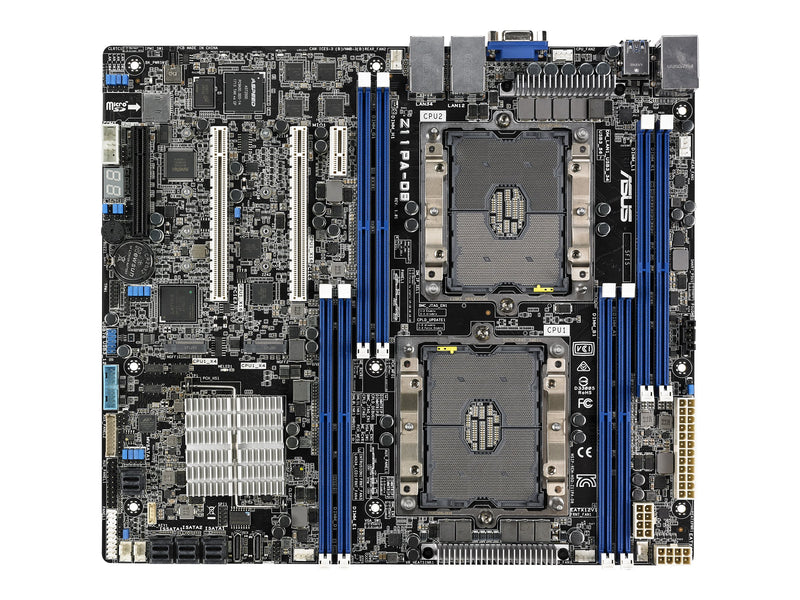

The ASUS Z11PA-D8 server motherboard features the Intel C621 chipset and dual LGA 3647 sockets, each of which can support one processor. It offers breakthrough performance with the latest Intel Optane DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. It also features the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, Z11PA-D8 achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform. The Asus Z11PA-D8 comes with an optional Virtual RAID on CPU (VROC) enabling the connector to support NVMe SSDs with Intel Volume Management Device technology.
• Powerfulperformance with the latest 2nd Gen Intel Xeon Scalableprocessors and ECC memory.
• Increased performance or data redundancy with dual M.2 SSDs in RAID mode.
• High-speed storage interface support with dual OCuLink for NVMe.
• Connect up to 16 SATA 6Gb/s storage devices.
• Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC).
• More flexible storage capability with SD card support.
• Quick initialization guidance for faster BIOS tracking enhancement.
| Product Description | ASUS Z11PA-D8 - motherboard - SSI CEB - Socket P - C621 |
| Product Type | Motherboard - SSI CEB |
| Chipset Type | Intel C621 |
| Processor Socket | 2 x Socket P |
| Compatible Processors | Xeon (Maximum TDP 165 Watt) |
| Data Bus Transfer Rate | 10.4 GT/s |
| Max RAM Size | 1024 GB |
| RAM Supported | 8 DIMM slots - DDR4, ECC, registered, Load-Reduced, 3DS Load-Reduced |
| Storage Ports | 4 x Mini-SAS HD, 2 x OCuLink port, 2 x M.2 |
| USB / FireWire Ports | 4 x USB 3.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2500 |
| Dedicated Video Memory | 64 MB |
| LAN | 4 x Gigabit Ethernet |
