Description

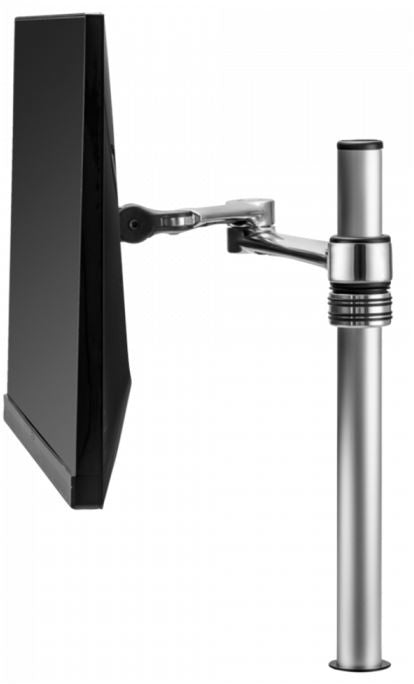

The Atdec AF-AT-P is an ergonomic and space-saving mount and ideal for corporate or home offices. It supports flat screen monitors up to 17.6 lb and curved screen monitors up to 12 lb. The Atdec AF-AT-P allows 360° rotation for sharing your screen, and ball-bearing arm joints ensure long-life operation.
• Focal distance, display height settings and viewing angle fine-tuning
• 3 pivot points for further reach
• 360° pole rotation which can be limited to 180°
• Supports mini PCs with separately available attachment plate
• Bolt through and desk clamp desk fixing options included
• Landscape or portrait viewing
• Screen sharing capability
• Bearing joints for smooth movement
• Quick-release display head with security screw
• Glare control and optimal viewing angle adjustment via tilt and pan capabilities
• Focal distance control
• Individual monitor height requirements settings
• Offset displays position
• Tool-less height adjustment
• Advanced, integrated cable management for a clean look
• Lightweight, durable, recyclable aluminium construction
• Bolt through supports desktop thickness of 0.5-1.5"
• 180° pan functionality
| Device Type | Mounting Bracket |
| Number of Displays Supported | 1 |
| Load Capacity | 17.6 lb / 8 kg, 12 lb / 5.4 kg |
| Mounting-Hole Pattern | 75 x 75 to 100 x 100 mm |
| Orientation | Landscape, Portrait |
| Desk Clamp Compatibility | 0 to 3" / 0 to 76.2 mm |
| Rotation Adjustment | 360° |
| Tilt Adjustment | 140° |
| Height Adjustment | 16.9" / 42.9 cm |
| Max Arm Extension Length | 16.6" / 42.2 cm |
| Material of Construction | Aluminum |
| Pole Height | 20.7" / 52.58 cm |
| Dimensions | 16.6 x 20.7" / 421.6 x 525.8 mm |
