Description

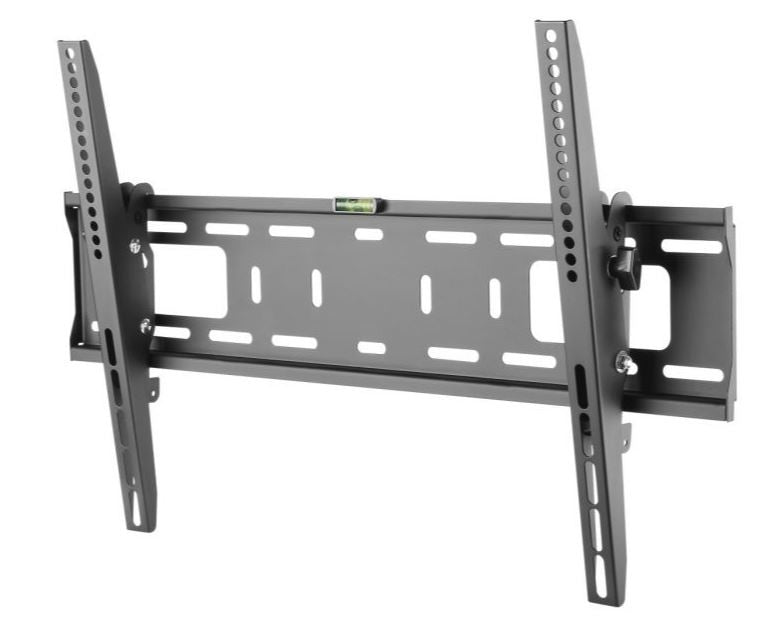

D-WT-5060 suits applications that require a tilted display, space behind the display for device/s, and fixture to stud walls with 24” stud spacing. This wall mount is designed for displays to 50kg (110lbs) and universal VESA patterns to 600x400. The AD-WT-5060 mounts displays tilted -10° to +5° to the wall, with 56mm (2.2”) space at rear in which devices may be concealed. Its versatility and construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments. AD-WT-5060 suits most types of walls (with appropriate hardware*) and demonstrates Adtec’s easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
| Product code | AD-WT-5060 |
| Material | Steel |
| Warranty | 10 years |
| Flat screen: maximum supported weight, kg | 50.00 |
| VESA mounting hole pattern, mm | Universal, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 |
| Range of motion | Tilt |
| Landscape to portrait screen rotation | No |
| Minimum distance from wall (mm) | 56mm (2.2") |
| Maximum distance from wall (mm) | 56mm (2.2") |
