Description

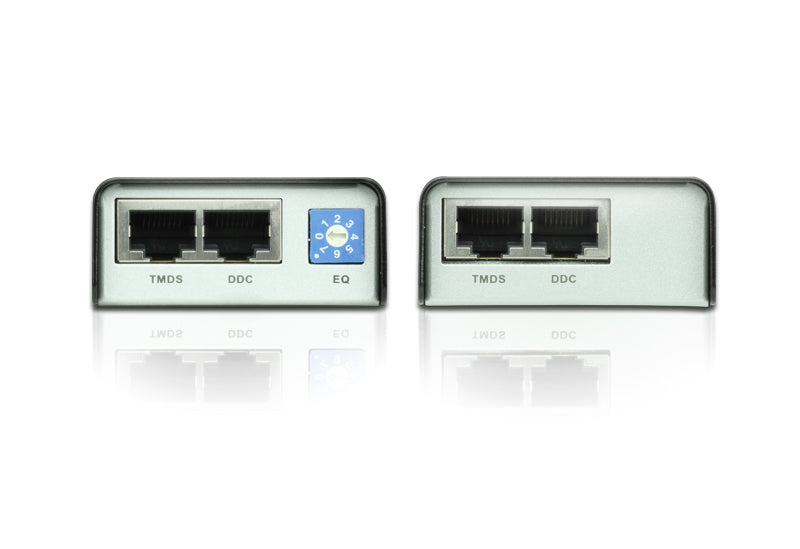

The Aten VE800A-AT-U HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5/6 cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5/6 cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture-perfect viewing experience you desire.
| Interfaces (Out) | VE800AR - 1 x HDMI Type A Female (Black), VE800AT - N/A |
| Max Distance (Out) | VE800AR - 3m, VE800AT - N/A |
| Interfaces (In) | VE800AR - N/A, VE800AT - 1 x HDMI Type A Female (Black) |
| Max Distance (In) | VE800AR - N/A, VE800AT - 3m |
| Max Pixel Clock | 225MHz - Both |
| Compliance | HDMI (3D, Deep Color) - Both HDCP Compatible - Both |
| Max Resolutions/Distance | Up to 1080p@40m; 1080i@60m - Both |
| Output | VE800AR - 1 x HDMI Type A Female (Black). VE800AT - N/A |
| Input | VE800AR - N/A, VE800AT - 1 x HDMI Type A Female (Black) |
| Power | 1 x DC Jack - Both |
| Power Consumption | VE800AR - DC5V:0.61W:3BTU, VE800AT - DC5V:0.9W:4BTU |
| Housing | Metal |
| Weight | 0.16kg |
| Dimensions (L x W x H) | 9.00 x 5.50 x 2.20cm |
