Description

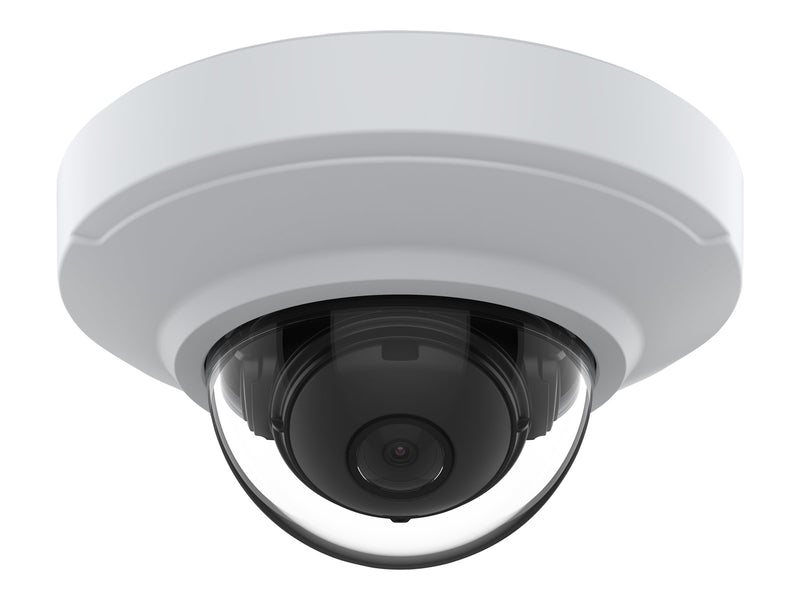

The Axis M3065-V 01707-001 is an ultra-compact, indoor fixed mini dome with dust- and IK08 vandal-resistant casing for easy mounting on wall or ceiling. The M3065-V has a Fixed lens, horizontal/vertical field of view 102°/55°. Day/Night functionality with automatically removable IR-cut filter. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; max HDTV 1080p at 30 fps with WDR. HDMI output (micro). Zipstream for reduced bandwidth and storage.
• Automatically removable IR cut filter for day and night functionality
• 3.1mm fixed lens is IR corrected
• Fixed iris
• Digital PTZ
• Camera pivots ±175° horizontally and ±80° vertically
• ±175° rotation range
• Multiple, individually configurable streams in H.265, H.264, and MJPEG
• Axis Zipstream technology lowers bandwidth and storage requirements
• Controllable frame rate and bandwidth (VBR/MBR H.264 and H.265)
• Image settings include compression, color saturation, brightness, sharpness, contrast, white balance, day/night threshold, exposure control (including automatic gain control), WDR up to 115 dB depending on scene, fine tuning of low-light behavior, text and image overlay, privacy masks, 0, 90, 180, and 270° rotation including corridor format, and mirroring
• Pixel counter
• Security features include brute force delay protection and signed firmware
• Analytics include video motion detection and active tampering alarm, with support for autotracking, motion guard, fence guard, loitering guard, people counter, queue monitor, occupancy estimator, direction detector, tailgating detector, random selector, and third-party applications
• Event triggers include analytics, edge storage events, and virtual inputs through API
• 100M RJ45 Ethernet port
• Micro-HDMI port to connect to an external monitor
• Two-way audio support via optional Axis T61 audio and I/O interfaces with portcast technology (available separately)
• Supports recording to network-attached storage and microSD card encryption
• PVC, BFR, and CFR free
| Product Description | AXIS M3065-V - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - dustproof / waterproof / vandal-proof |
| Dimensions (WxDxH) | 10.1 cm x 10.1 cm x 5.6 cm |
| Weight | 150 g |
| Colour | White |
| Connectivity Technology | Wired |
| Camera | Colour - Day&Night |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p, 1080p |
| Optical Sensor Type | RGB CMOS - 1/2.9" |
| Minimum Illumination | 0.2 lux - colour - F2.0 - 50 IRE ? 0.04 lux - B&W - F2.0 - 50 IRE |
| Focal Length Control | Fixed focal |
| Focal Length | 3.1 mm |
| Lens Iris | F/2.0 - fixed iris |
| Panning Range (degree) | -175 to +175 |
| Tilting Range (degree) | -80 to +80 |
| Interfaces | HDMI, Ethernet 10Base-T/100Base-TX |
| Voltage | PoE |
| Features | Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), ONVIF support, Privacy Mask Function, text stamp, Video Motion Detection Technology, active tampering alarm, digital PTZ function, password protection, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 0 ?C - 45 ?C; 15 - 85% (non-condensing) relative humidity |
