Description

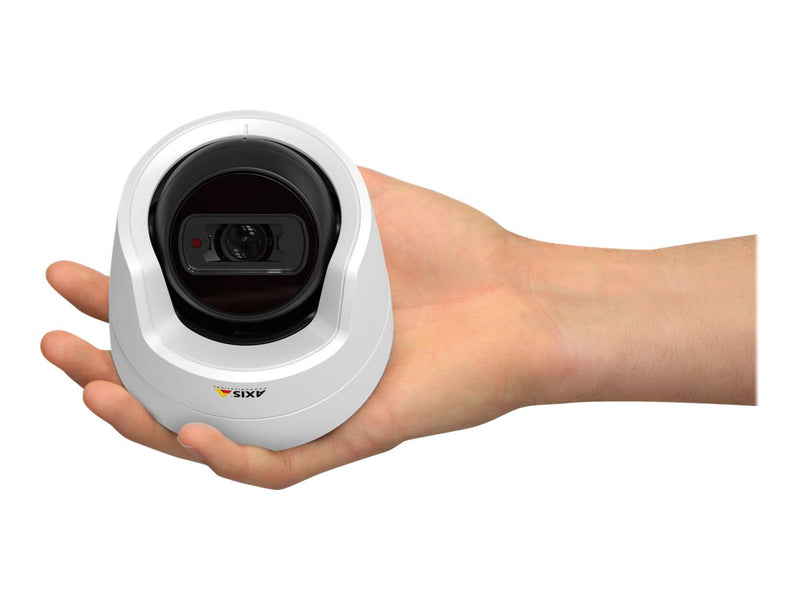

AXIS M3104-LVE - network surveillance camera
Day/night, compact mini dome in a vandal-resistant, outdoor-ready, flat-faced design. Built-in IR illumination and WDR - Forensic Capture. Fixed lens. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 720p resolution at 30 fps. Axis’ Zipstream technology for reduced bandwidth and storage needs. Memory card slot for optional local video storage. Video motion detection and active tamp ering alarm. Power over Ethernet. Midspan not included.
| Device Type | Network surveillance camera - fixed - outdoor - dustproof / waterproof |
| Dimensions (WxDxH) | 10.1 cm x 10.1 cm x 9.4 cm |
| Weight | 380 g |
| Colour | White |
| Connectivity Technology | Wired |
| Camera | Colour - Day&Night |
| Max Resolution | 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 720p |
| Optical Sensor Type | CMOS - 1/2.8" |
| Minimum Illumination | 0.2 lux - colour - F2.0 - 50 IRE ? 0.04 lux - B&W - F2.0 - 50 IRE ? 0 lux - IR |
| Focal Length | 2.8 mm |
| Lens Mounting | M12 mount |
| Lens Iris | F/2.0 - fixed iris |
| Panning Range (degree) | -180 to +180 |
| Tilting Range (degree) | 0 to 60 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Plus |
| Features | Sharpness control, digital image rotation, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), ONVIF support, Motion Detection Technology, infrared cut filter, Privacy Mask Function, dual video stream, active tampering alarm, digital PTZ function, Event Notification, Text Caption Overlay, password protection, auto tracking, Edge Storage, Variable Bitrate (VBR), video analytics, Zipstream technology, cross line detection, Forensic Capture (115 dB), image overlay |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -30 ?C - 50 ?C; 10 - 85% (non-condensing) relative humidity |
