Description

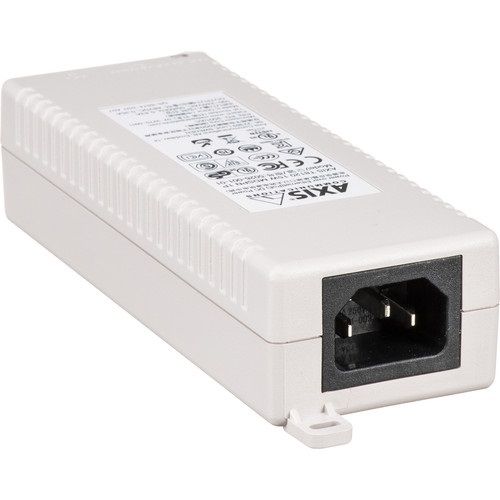

The Axis T8120 5026-206 Midspan PoE Injector offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. With the use of Axis T8120 PoE, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable.
• Easier and faster installations.
• No need for power outlets
| Product Type | PoE Injector |
| Input Ports | 1 x 10/100Base-TX |
| Output Ports | 1 x 10/100Base-TX |
| Weight (Approximate) | 453.6 g |
| Mount Type | Wall/Shelf-mountable |
| Input Voltage | 120 V AC, 230 V AC |
| Maximum Frequency | 63 Hz |
| Minimum Frequency | 47 Hz |
| Maximum Input Current | 500 mA |
| Maximum Output Power | 15 W |
| Maximum Output Voltage | 12 V DC |
| Compatibility | Axis T90C20 IR Illuminator Axis Network Cameras: 212/-V PTZ, 221, M1054, M11 Series, P13, Q16, Q1755, Q1910/-E, Q1921/-E, Q1922/-E, M50 Series, P5512, P1343, P1343-E, P1344-E, P1346-E, P1347-E, P1353-E, P1354-E, P1355-E, P1357-E, Q1602-E, Q1604-E, Q1755-E, P1343-E, P1344-E, P1346-E, P1347-E, P1353-E, P1354-E, P1355-E, P1357-E, Q1602-E, Q1604-E, Q1755-E, M1011, M1013, M1014, M1011-W, M1031-W |
| Axis Video Encoders/Decoders | M7001, M7010, M7014, Q7401, Q7424-R, P7210, P7214, P7701, P8221 |
| Axis Video Servers | 240Q, 241S, 241Q, 241QA, 243SA |
