Description

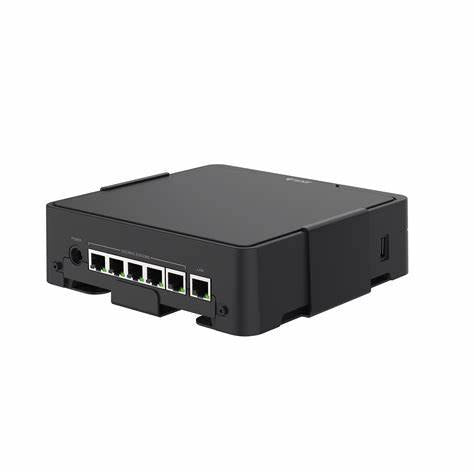

The AXIS W800 01964-006 System Controller is the central integration and management point of the body-worn solution. The modular design of the system controller ensures a flexible and highly scalable system. A single AXIS W800 supports up to five docking stations and 40 cameras but can easily be extended with additional system controllers for larger body-worn systems.
• AXIS W800 System Controller is the central integration and management point of the body-worn solution.
• It ensures a high speed and supervised data offloading from the cameras and has built in temporary storage.
• A single AXIS W800 supports up to five docking stations and 40 cameras and larger body worn systems can easily be extended with additional system controllers.
• Power adaptor and mounting bracket are included.
| Product Type | System Controller |
| Security | Password protection, HTTPSa network access control, digest authentication, brute force delay protection |
| Supported Protocols | IPv4, IPv6 USGv6, HTTPSa, Bonjour, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP |
| Casing | IP3X-rated, Aluminum and Plastic Casing |
| Color | black NCS S 9000-N |
| Mounting | Mounting bracket |
| Sustainability | PVC free |
| Power | 12 V DC, Typical 12.25 W, max 16 W |
| Connectors | 1 x (uplink) Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T 5 x (device network) Shielded RJ45 10BASE-T/100BASETX/1000BASE-T USB 2.0 DC connector for 12 V DC input |
| Storage | 480 GB SSD |
| Operating Conditions | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 10–85% RH (non-condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity | 5–95% RH (non-condensing) |
