Description

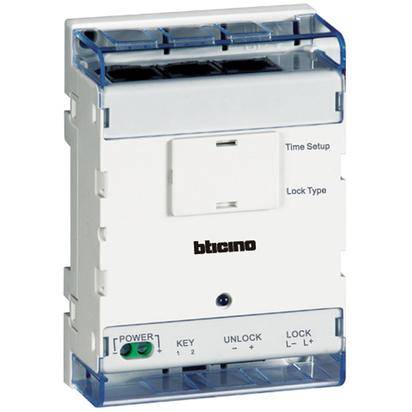

Door lock accessory. Operates electric door locks, mainly the commonly used 12 V cathode locks. When the opening current of an anode lock is over 1 A, this device is also required to operate anode locks. It is generally connected to the entrance panel to obtain the door lock release control signal. Possibility to open door locks by means of external manual switches. Selection of the electrical door lock type release by jumper selection / configuration line. DIN rail installation.
| Brand | BTicino |
| Rated voltage | 30 Vdc |
| Rated power W | 0.9 |
| Height | 105 mm |
| Width | 72 mm |
| Depth | 33 mm |
| Series EN | D45 System |
