Description

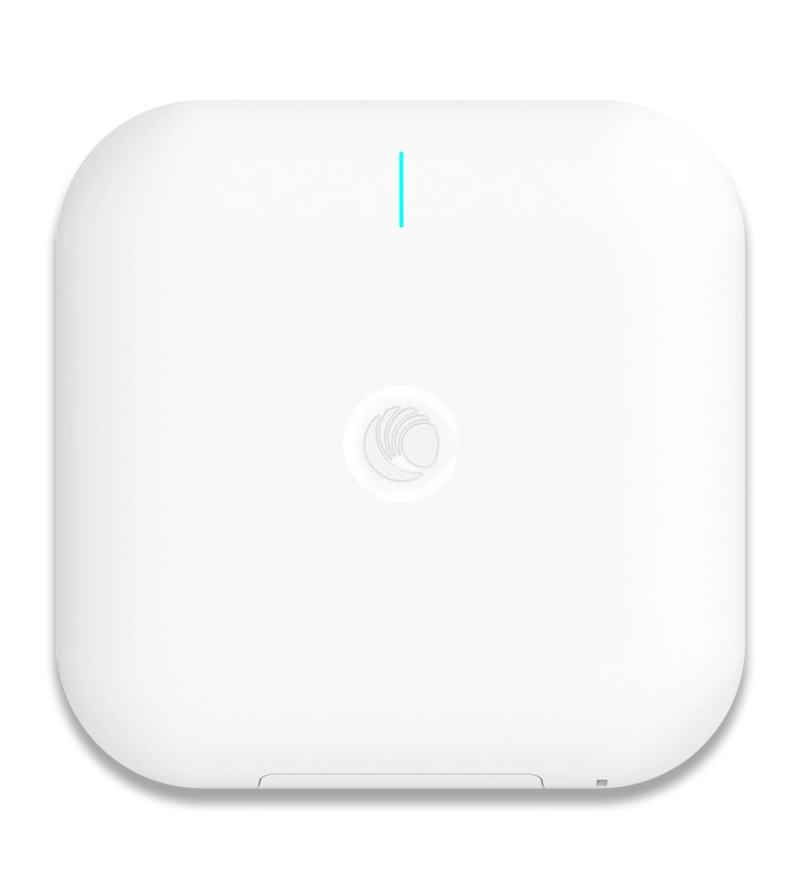

The Cambium Networks XV3-8 Tri-Radio Wi-Fi 6 Access Point XV3-8X00A00-RW features a total of five (5) radios, delivering a next-generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4×4 plus one 2.4 GHz 4×4, or the two 5 GHz radios can be combined into a single 5 GHz 8×8 radio with the maximum power and performance of the 802.11ax standard.
• High-density Wi-Fi with software-defined radios (SDR)
• Five-radio architecture for edge services
• 6 Gbps aggregate data rate
• Dedicated scanning sensor, dual band
• Application policy control
• EasyPass with Microsoft Azure and Google G Suite integration
| Product Type | RJ45 Connector |
| Radios | 2.4 GHz: 802.11 b/g/n/ax, 4x4; 5 GHz: 802.11 a/n/ac Wave 2/ax, 8x8 (or configure as two 4x4) 2.4/5 GHz scan, 1x1 BLE 4.1 |
| Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open |
| Max PHY Rate | 2.4 GHz: 1,147 Mbps / 5 GHz: 4,804 Mbps |
| Ports | 1 x IEEE 802.3 10/100/1000 Mbps; 1 x IEEE 802.3bz 100/1000/2500/5000 Mbps Auto sensing MDIX; 1 x USB 3.0 |
| Antenna | - 2.4 GHz: 5 dBi - 5 GHz: 6.7dBi - 2.4/5 GHz: sensor 5 dBi / 6.3 dBi BLE 5 dBi |
| Max EIRP | 2.4 GHz: 31 dBm; 5 GHz: 36 dBm |
| Power | Max power with USB/BLE, 35 W (802.3bt); 802.3at mode with USB/BT disabled 12 VDC power, 2.1 mm (.083 in) barrel connector |
| Dimensions | 235 mm x 235 mm x 42 mm (9.25 in x 9.25 in x 1.65 in) |
| Weight | 1,250 g (2.76 lbs) |
