Description

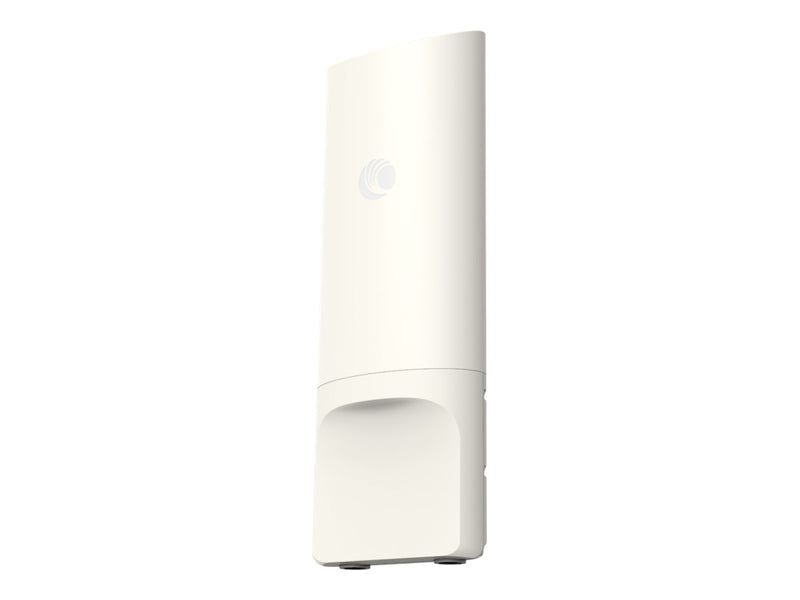

The Cambium Networks Outdoor Dual Radio is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. The XV2 2T features surge suppression up to 4kV and an LTE co-existence filter. It delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T0 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
• Dual radio 802.11ax
• 2.5 GbE Uplink Ethernet
• 1 GbE with power out
• Outdoor IP67 rated, -40ºC to 65ºC
• 2.5 GbE Uplink Ethernet
• 1 GbE with power out
• Outdoor IP67 rated, -40ºC to 65ºC
| Product Description | Cambium Networks XV2-2T - radio access point - Wi-Fi 6, Bluetooth | |
| Device Type | Radio access point | |
| Form Factor | Wall / pole mountable - outdoor | |
| Localisation | Rest of World | |
| Data Link Protocol |
|
|
| Frequency Band | 2.4 GHz, 5 GHz | |
| Performance | Maximum data rate (2.4 GHz): 573.5 Mbps ? Maximum data rate (5 GHz): 1201 Mbps ? Channel width: 20 / 40 / 80 MHz | |
| Capacity | Wireless clients: 512 ? SSIDs total: 16 | |
| Power Over Ethernet (PoE) Supported | PoE | |
| Dimensions (WxDxH) | 20 cm x 8 cm x 58.2 cm | |
| Weight | 1.2 kg | |
| Manufacturer Warranty | 3-year warranty |
