Description

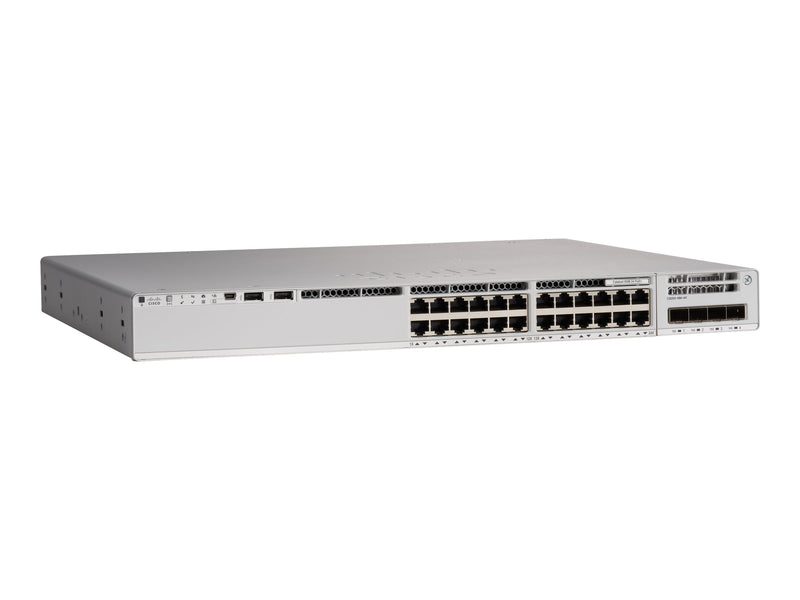

The Cisco Catalyst 9200L 24-port PoE+, 4 x 10G, Network Essentials C9200L-24P-4X-E is a rack-mountable switch that is capable to provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It also offers resiliency that keeps your business up and running seamlessly. This device is perfectly equipped with up to 48 ports of full Power over Ethernet Plus (PoE+) capability. It also offers different features including ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries as well as the Cisco IOS XE which is the common licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry.
| Product Description | Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - rack-mountable |
| Device Type | Switch - 24 ports - L3 - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Stacking bandwidth: 80 Gbps ? Switching capacity: 128 Gbps ? Forwarding rate: 190.4 Mpps |
| Capacity | Virtual networks: 1 ? IPv4 routes: 11000 ? IPv4 routing table entries: 3000 ? IPv6 routing table entries: 1500 ? Multicast scale: 1000 ? ACL scale entries: 1500 ? FNF entries: 16000 ? VLANs supported: 1024 ? Switched virtual interfaces (SVIs): 512 ? QoS hardware queues per port: 8 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 28.8 cm |
| Weight | 5.5 kg |
| Manufacturer Warranty | Limited lifetime warranty |
