Description

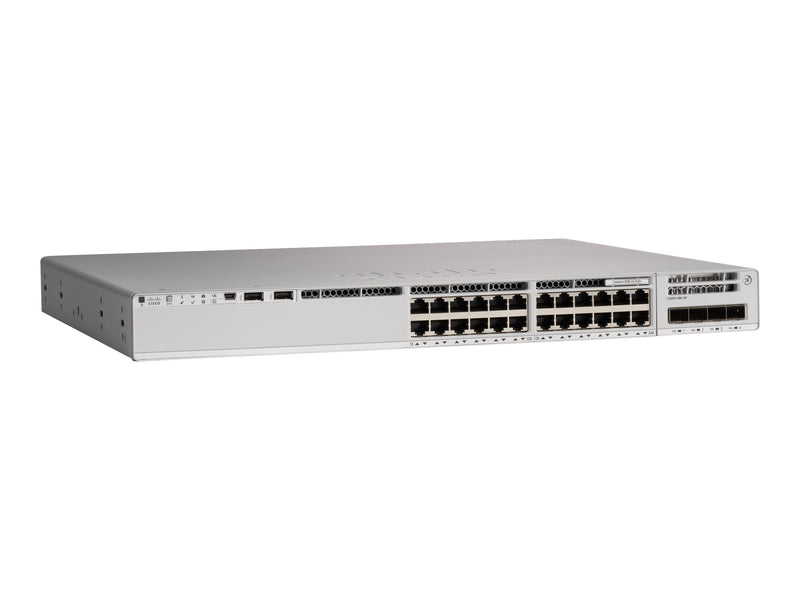

The Cisco Catalyst C9200L-24P-4G-E is a rack-mountable switch that is capable to provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It also offers the resiliency that keeps your business up and running seamlessly. It has the capacity to facilitates Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support and Remote Switch Port Analyzer (RSPAN). In addition, the C9200L-24P-4G-E is fully equipped with 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink).
| Product Description | Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - rack-mountable |
| Device Type | Switch - 24 ports - L3 - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Stacking bandwidth: 80 Gbps ? Switching capacity: 56 Gbps ? Forwarding rate: 83.33 Mpps |
| Capacity | Virtual networks: 1 ? IPv4 routes: 11000 ? IPv4 routing table entries: 3000 ? IPv6 routing table entries: 1500 ? Multicast scale: 1000 ? ACL scale entries: 1500 ? FNF entries: 16000 ? VLANs supported: 1024 ? Switched virtual interfaces (SVIs): 512 ? QoS hardware queues per port: 8 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 4.4 cm x 28.8 cm |
| Weight | 4.35 kg |
| Manufacturer Warranty | Limited lifetime warranty |
