Description
The Cisco 4431 supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.
• High performance
• Lower WAN expenditures
• Superior and secure user application experiences
• IT consolidation, space savings, and improved total cost of ownership (TCO)
• Business continuity and increased resiliency

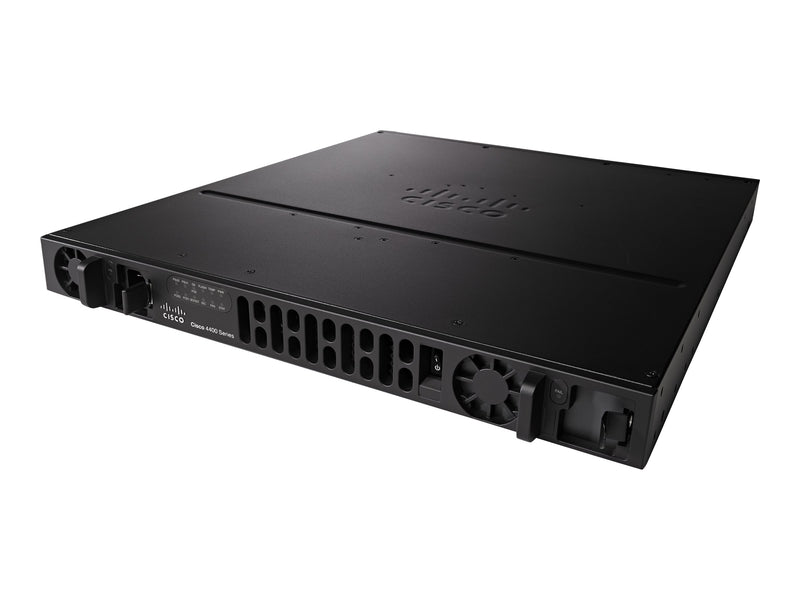

| Product Description | Cisco Integrated Services Router 4431 - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Rack-mountable - modular - 1U |
| WAN Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Aggregate throughput: 500 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON |
| Features | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 43.815 cm x 50.72 cm x 4.39 cm |
| Weight | 8.4 kg |
| Manufacturer Warranty | 90 days warranty |
