Description

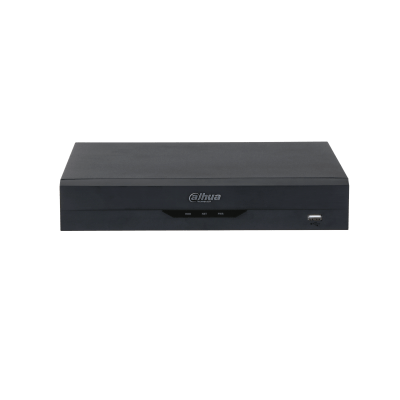

Dahua 4 Channel Compact 1U 4PoE WizSense Network Video Recorder (NVR2104HS-P-I) is a highly cost-effective economical product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, and remote management and control. This product is suitable for face detection and recognition at entrances/exits, and perimeter protection of people and vehicles
- New 4.0 user interface
- Remote surveillance, live view and video play on mobile phone App
- Max. decoding capability: 4×1080P@30fps
- Supports adaptive decoding
- Supports mainstream cameras of ONVIF and RTSP protocols
- H.264/.H265/Smart H.264+/Smart H.265+/MJPEG, H.265 auto switch
- 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K; and non-simultaneous video output is also supported, the maximum resolution is 1080P
- 1-channel face detection and recognition (AI by NVR); or 2-channel perimeter detection (AI by NVR); or 4-channel SMD (AI by NVR); up to 10 face databases and 5,000 face images
- All-channel AI by the camera: face detection and comparison, perimeter protection and SMD
- Security baseline 2.1
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web/operating in local GU |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Resolution | 12M/8M/5M/4M/3M/2M/720P/D1 |
| Decoding Capability | "AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps" |
| Video Output | 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K |
| Multi-screen Display | 1/4 |
| Third Party Camera Access | Onvif, RTSP |
| Video | PCM/G711A/G711U/G26/AAC |
| Audio | PCM/G711A/G711U/G26/AAC |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS |
| Mobile Phone Access | Android, iOS |
| Interoperability | ONVIF (profile T/profile S/profile G), CGI, SDK |
| Browser | Chrome, IE9 or above, Firefox |
| Multi-channel Playback | Up to 4 channels playback |
| Record Mode | Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
| Storage | Local HDD and network |
| Backup | USB device |
