Description

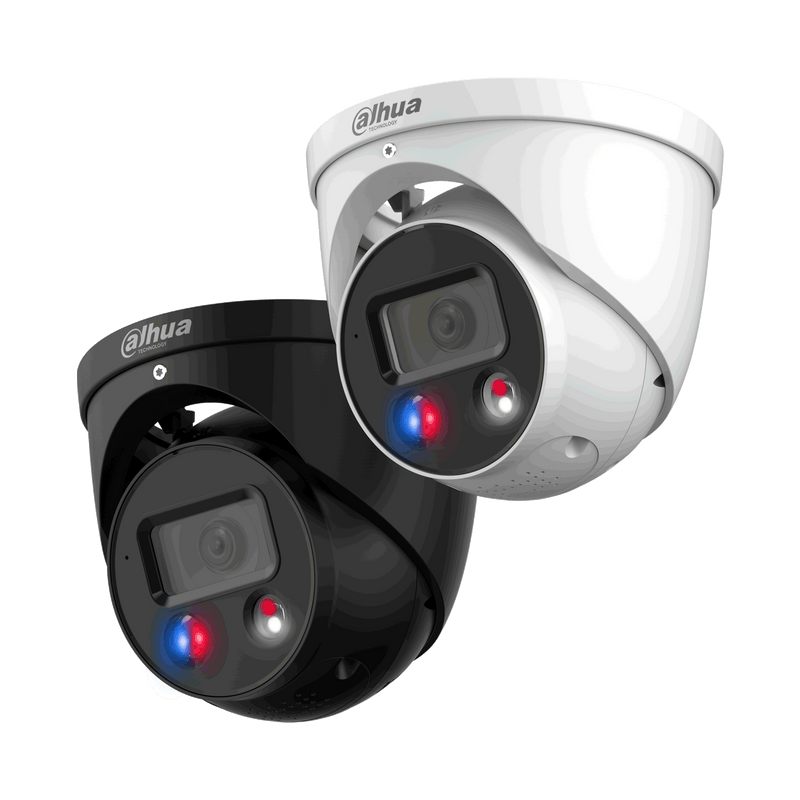

The Dahua DH-IPC-HDW3849H-AS-PV-S3 supports intelligent functions such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
• 8 MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 8 MP (3840 × 2160)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
• ROI (Region of Interest), SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR (Wide Dynamic Range), 3D NR (Noise Reduction), HLC (High Light Compensation), BLC (Back Light Compensation), digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicles and humans).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual mics; 1-ch speaker.
• 12 VDC/PoE power supply.
• IP67 protection.
• Sound and light alarm (red and blue lights).
• SMD (Smart Motion Detection) 3.0.
• One press arming/disarming through alarm input.
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| RAM | 128 MB |
| ROM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Colour, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| S/N Ratio | < 56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) 1 (warm light) |
| Lens Type | Fixed-focal |
| Field of View | Horizontal: 106° Vertical: 55° Diagonal: 125°br> |
| DORI Distance | Detect: 91.0 m (298.56 ft) Observe: 36.4 m ( 119.42 ft) Recognise: 18.2 m (59.71 ft) Identify: 9.1 m (29.86 ft) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
