Description

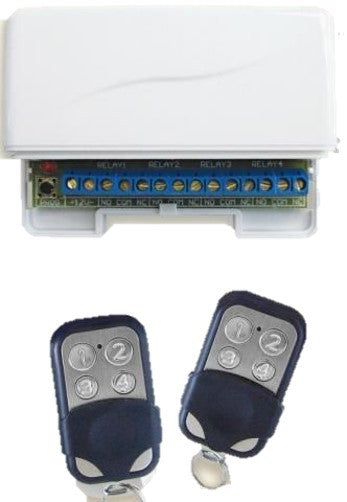

RSR-01 - Stand Alone 4 x Relay Receiver
- Comes with 2 x (RTR-01)
- Can work with any alarm panel to perform functions of Arm/Disarm/Panic or electric devices control
- 4-relay outputs; SPDT
- Relay 3 and 4 outputs can be easily programmed for latching or delay operation
- Keeloq rolling code enhancing security
- Standard capacity of 25; large capacity of 500 also available (P/N: RRR500)
- Can easily delete a single remote
- Mounting plate provided for quick and easy installation
| Output | 4-relay outputs |
| Relay rating | SPDT; 1A 24VDC/120VAC |
| Operating voltage | 9-15VDC |
| Current | 8-40mA |
| Capacity | 25 |
| Sizes | 90mm(L) x 60mm(W) x 28mm(H) |
