Description

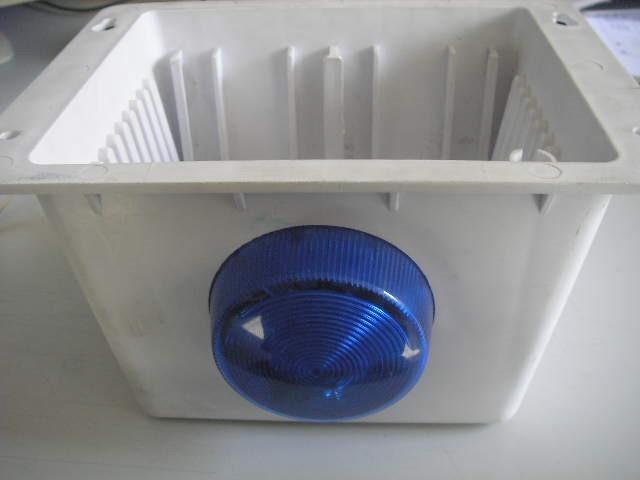

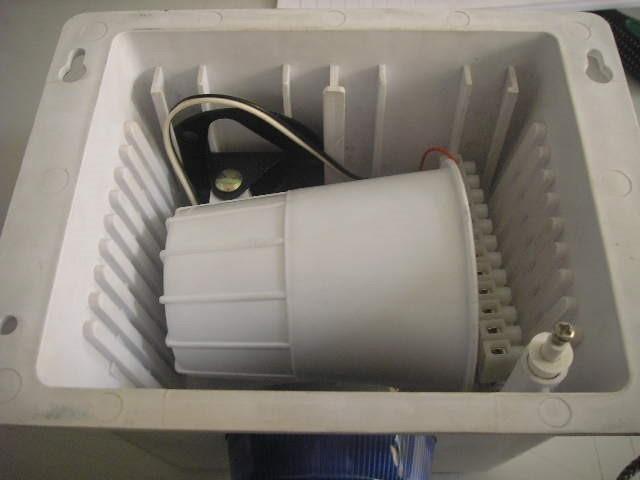

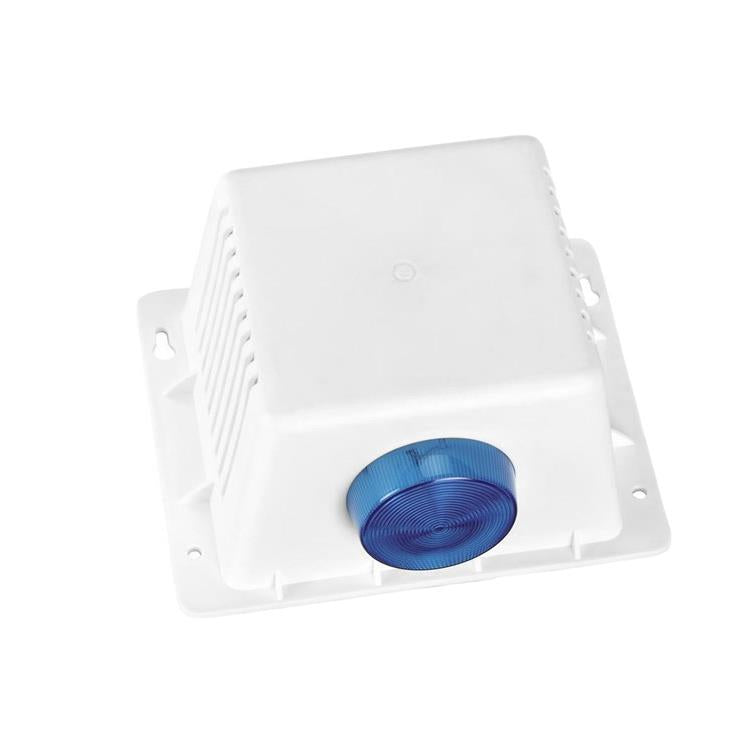

The DAS S3296A Siren Strobe is a combined warning module featuring a high-visibility strobe light, loud horn speaker, and integrated reed switch, designed for security and alarm systems. Housed in a durable white enclosure, this unit offers passive drive operation with an 8-ohm speaker coil and 15W max input power. The strobe provides a strong visual alert with a flash frequency of 85–95 flashes per minute, making it effective for both indoor and outdoor warning applications. It includes tamper protection and simple wiring for easy installation.
Features
- All-in-one unit: strobe light, horn speaker, and reed switch
- High-intensity strobe for visual alerts
- Loud 8-ohm horn speaker with passive drive
- Built-in reed switch for additional security
- Easy wire connection with color-coded leads
- Suitable for alarm systems and intrusion alerts
- Compact and durable white housing
Specifications
| Brand | DAS |
| Type | Siren Strobe Horn with Tamper Protection |
| Color | White |
| Material | Durable plastic housing |
| Model | S3296A |
| Dimensions | 19.8 x 15.4 x 11 cm ± 0.5 mm |
| Strobe Rated Voltage | 12V DC |
| Strobe Flash Frequency | 85–95 flashes per minute |
| Strobe Current | 10–100 mA |
| Horn Speaker Impedance | 8Ω ±15% |
| Horn Input Power | 15W max |
| Reed Switch Max Voltage | 100 VDC / VAC |
| Reed Switch Max Current | 0.5A |
| Warranty | 1 year |
