Description

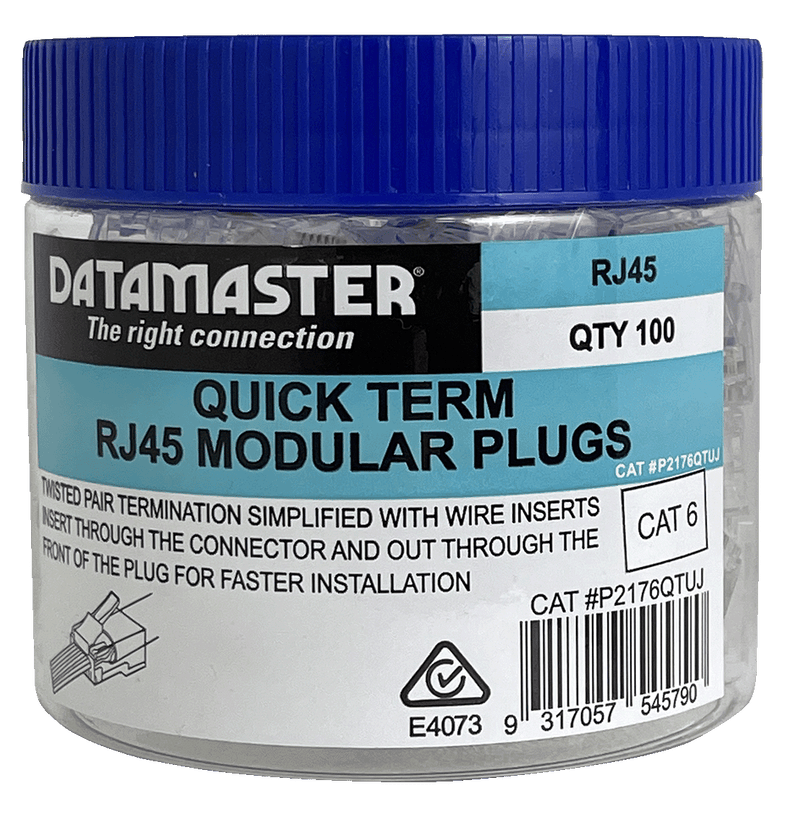

Quick Term RJ45 push through single piece plug. Wires are slid through the channels enabling visible positioning prior to termination. Terminated with the T0019QT Quick Term crimping tool, the pass through connector is an ideal plug for easy and fast assembly. The DATAMASTER Quick Term RJ45 reduces approximately 40% of the time that it takes to assemble a Cat 6 patch cable with standard 2 piece Cat-6 plugs. With the patented 3-prong contact pins (Z blades),the Quick Term connector can be used with both stranded and solid cables.
| UL Applications | 250 Volts ACMAX, at 2amps |
| Dielectric Withstanding Voltage | 1000 Volts AC |
| Insulation Resistance | 100MΩ |
| Termination | Resistance 20mΩ MAX after environmental testing |
| Cable-to-plug tensile strength | 20pound MIN |
| Durability | 200 Mating Cycles |
| Housing | Polycarbonate, UL94V-0 or UL4V-2 |
| Colour | Transparent |
| Contact Blade | Copper Alloy |
| Conductor | Stranded and Solid wire, 23 AWG, 24 AWG, 26 AWG |
