Description

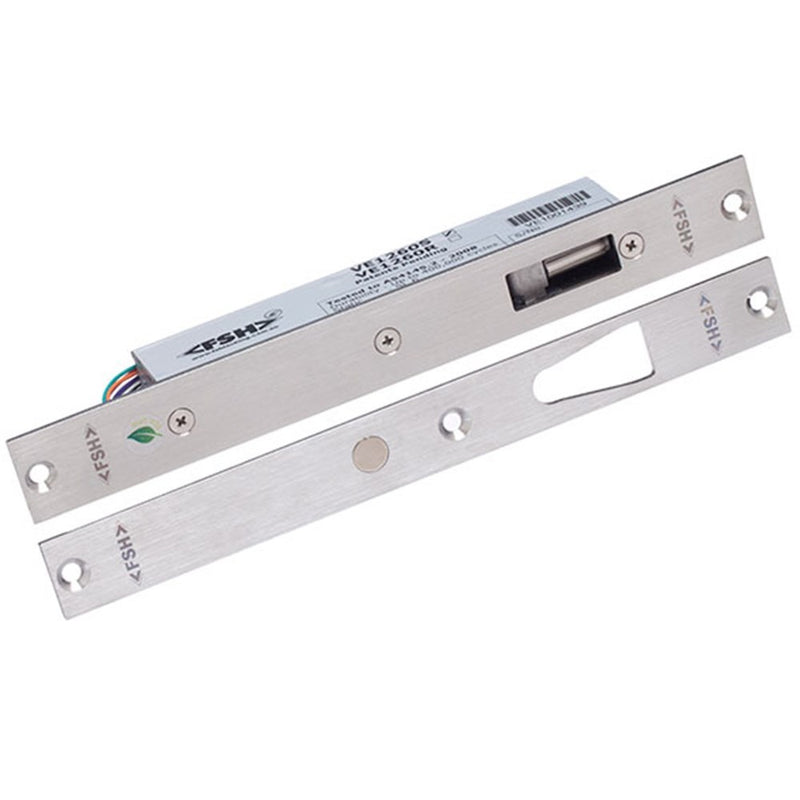

The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA@12VDC. A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/ TRIMEC ES8000 drop bolt footprint.
An optional LED red/green indicator unit is available.
| PART NO | VE1260S |
| FUNCTION | Mortice Mount, power-to-lock/power-to-release field interchangeable, up to 35kg of Pre-Load capability, unlocking and up to 6.5kg locking |
| HOLDING STRENGTH | Up to 1000kg |
| VOLTAGE/CURRENT | Multi Voltage 12-30VDC Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load. More side load = more current. See preload vs. current graph. Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA) |
| APPROVALS | CE C-Tick Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies |
| MONITORING | Lock Status Sensor of the internal locking mechanism Door Status Sensor Built-in Reed Switch, monitoring the door position |
| ENVIROMENTAL | Operational Temperature Range -20° to +60°C |
| DURABILITY | Exceeding Australian Standard AS4145.2-2008 400,000 operating cycles Durability D7 |
| STRENGTH | Meeting Australian Standard AS4145.2-2008 Static Strength S8 Impact Strength S8 |
| MAXIMUM DOOR GAP | 8mm |
| DOOR MISALIGNMENT | Standard Strike Plate + 4mm Special Strike Plate up to + 12mm |
