Description

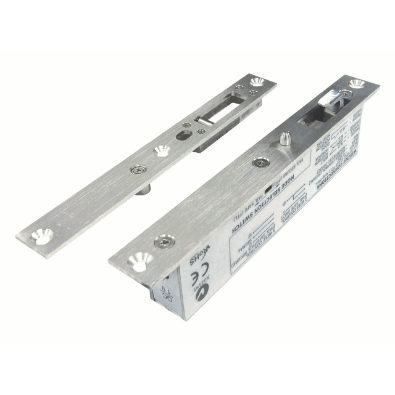

The patented HL1260 is a high torque motor driven hook lock for a sliding door. It can be installed vertically in the door frame (lock style) with the strike plate mounted on the edge of the door. Alternatively there is a surface mount box for the strike plate and/or lock for a sliding door.
The HL1260 is considered a “Green Product” as it consumes an in-rush current of 290mA@12VDC only during locking and unlocking action (active Mode), then in the locked or unlocked state (Sleep-Mode), it consumes current less than15mA@12VDC. The Hook Lock HL1260 should not be installed to doors exposed to wind and weather.
| PART No | HL1260 |
| FUNCTION | Mortice Mount, power-to-lock/power-to-release field interchangeable |
| HOLDING STRENGTH | Up to 650kg |
| VOLTAGE/CURRENT | Multi Voltage 12-30VDC | Active Mode: Locking/Unlocking cycle current is 0.29A to0.85A depending on the load | Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA) |
| APPROVALS | CE | C-Tick |
| MONITIORING | Lock Status Sensor of the internal locking mechanism | Door Status Sensor Built-in Reed Switch, monitoring the door position |
| ENVIROMENTAL | Operational Temperature Range -20 to +60C |
| DURABILITY | Exceeding Australian Standard AS4145.2-2008 | 400,000 operating cycles | Durability D7 |
| STRENGTH | Meeting Australian Standard AS4145.2-2008 | Static Strength S8 | Impact Strength S8 |
| WARRANTY | 5 year warranty |
