Description

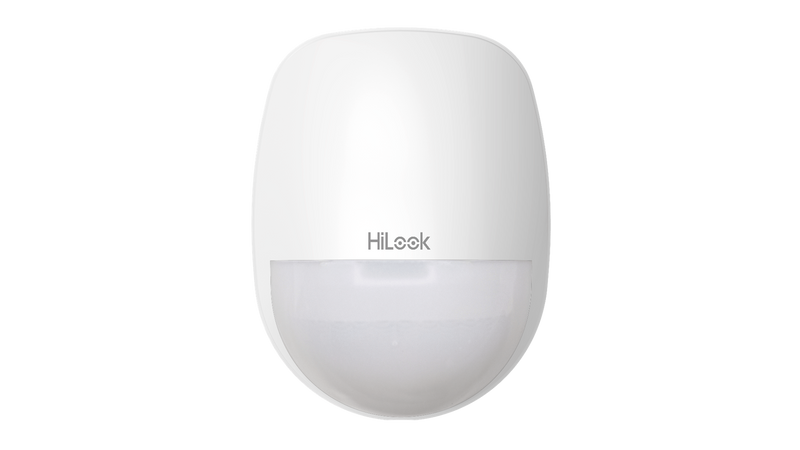

The Ellipse PIR Motion Detector combines sleek design with advanced detection technology to provide reliable security for a wide range of indoor spaces. With a modern and unobtrusive appearance, it blends seamlessly into any room while delivering exceptional performance.
Key Features:
- Modern Design: Small and sleek, offering a modern yet unobtrusive look to complement any room.
- Detection Range: Up to 18m volumetric coverage, perfect for small to large indoor areas.
- Digital Temperature Compensation: Adjusts sensitivity to maintain accurate detection, even when background temperature is close to body temperature.
- Automatic Sensitivity: Self-adjusting to environmental changes, ensuring consistent detection performance.
- 3D Optics: Enhanced target detection with more precise signals, focusing the infrared signal onto the pyro-electric sensor.
- Creep-Zone Protection: Covers the blind spot area directly below the detector to prevent intruder bypass.
- Selectable EOL Resistors: Multiple alarm resistor values (1K, 2K2, 4K7, 5K6, 8K2) and tamper resistance options to suit most control panels.
- Wall & Ceiling Mount Options: Mountable at heights of 1.8m to 2.4m with the option for ceiling installation.
- Anti-Insect Interference: Protects against insect interference and air movement in front of the sensor, ensuring precise detection.
- Wide Voltage Range: Operates on 9-16V with reverse polarity protection for added reliability.
- IFT Technology: Automatically adjusts alarm thresholds to avoid false alarms from electromagnetic or electrical interference.
Ideal for both residential and commercial properties, the Ellipse PIR Motion Detector ensures high-accuracy, stable detection with enhanced environmental adaptability.
