- The HPE OfficeConnect 1420 Switch Series features gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity.
- The HPE OfficeConnect 1420 Switch Series includes nine models, all with gigabit performance and a choice of key features including PoE+, Fiber and 10G uplink options.
- All HPE OfficeConnect 1420 Switch Series models are plug-and-play with zero configuration and no required ongoing administration.
- The HPE OfficeConnect 1420 Switch Series offers a cost-effective upgrade path to next-generation 10GbE networks to reduce performance bottlenecks

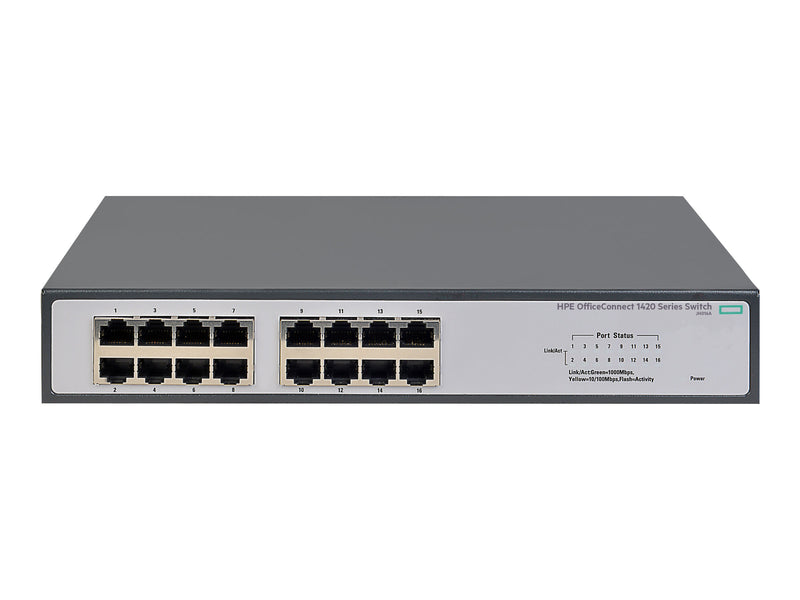

Product Description | HPE 1420-16G - switch - 16 ports - unmanaged - rack-mountable |
Device Type | Switch - 16 ports - unmanaged |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 16 x 10/100/1000 |
Performance | Throughput (64-byte packet size): 23.8 Mpps ? Switching capacity: 32 Gbps |
MAC Address Table Size | 8192 entries |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Quality of Service (QoS), fanless, 512KB packet buffer, DiffServ Code Point (DSCP) support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 26.6 cm x 16.2 cm x 4.4 cm |
