Description

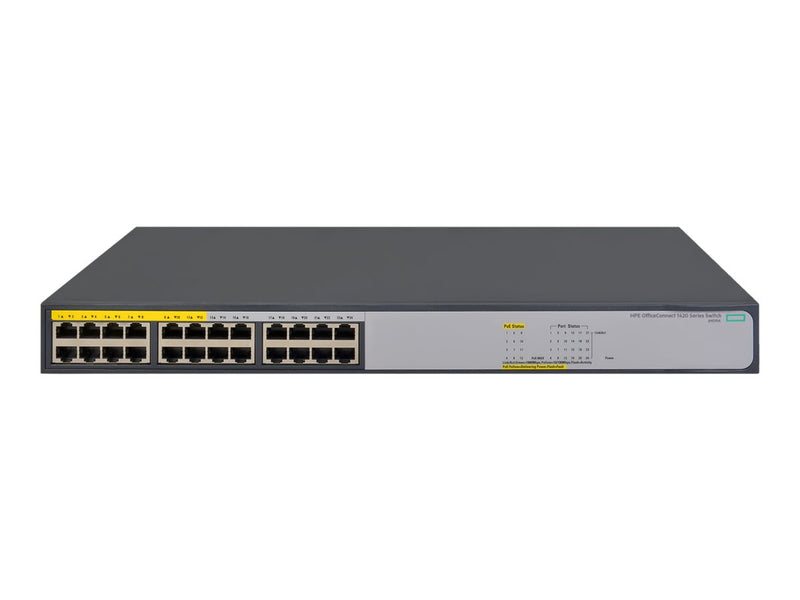

The HPE Aruba OfficeConnect 1420 JH019A is a Rack-mountable Unmanaged Desktop Switch that has a total of 24-Port RJ-45 ( 12 x 10/100/1000 (PoE+) + 12 x 10/100/1000). This switch features unmanaged plug-and-play Gigabit Ethernet switching, low power consumption, a fanless design for silent operation, and quality of service capabilities for improved network efficiency.
- Unmanaged plug-and-play Gigabit Ethernet switching
- Green features for low power consumption
- Fanless design for silent operation
- Quality of Service capabilities for improved network efficiency
- Limited Lifetime Warranty
| Product Description | HPE 1420-24G-PoE+ (124W) Switch - switch - 24 ports - unmanaged - rack-mountable |
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 12 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 124 W |
| Performance | Throughput (64-byte packet size): up to 35.7 Mpps ? Switching capacity: 48 Gbps |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Quality of Service (QoS), fanless, 512KB packet buffer, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | Dimensions (WxDxH) |
