Description

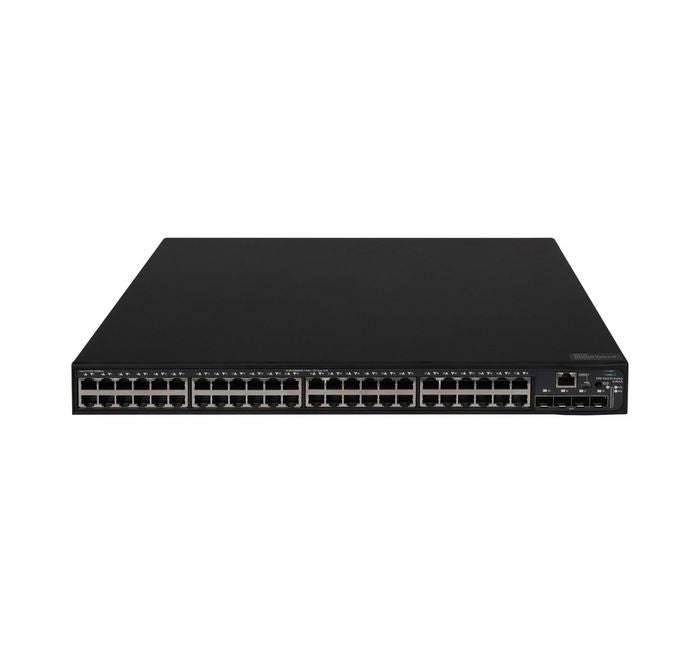

The HPE FlexNetwork 5140 EI Switch Series delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP, conveniently fixed 10GbE uplink ports, PoE+, ACLs, and IPv6, and delivers energy savings with Energy Efficient Ethernet.
The HPE FlexNetwork 5140 EI Switch Series also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with the HPE Intelligent Management Center (IMC) for a single view of your entire network.
| Brand | HPE |
| Ports | (48) RJ-45 autosensing 10/100/1000 ports (4) SFP+ fixed 1000/10000 SFP+ ports |
| Additional ports and slots | 1 RJ-45 Serial Console Port |
| Memory and processor | 512 MB SDRAM, 256 MB flash |
| Input Voltage | 100 - 240 VAC, rated -54 to -57 VDC, rated (depending on power supply chosen) |
| 1000 Mb latency | < 5 µs |
| 10 Gbps latency | < 3 µs |
| Throughput | 131 Mpps |
| Routing/switching capacity | 176 Gbps |
| Frequency | 50/60 Hz |
| AC voltage | 100 VAC–240 VAC |
| DC voltage | –54 VDC to –57 VDC |
| Current | 10A |
| Maximum power rating | 478W |
| Idle power | 47W |
| PoE power | 370W PoE+ |
| Dimensions | 4.36 x 44 x 40 cm |
