Description

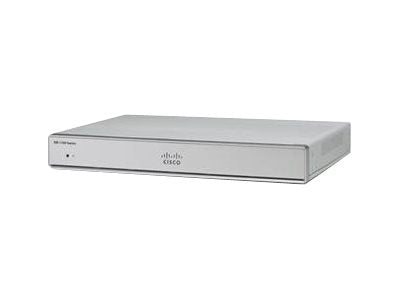

The Cisco C1117-4PLTELA Router is a device that is capable of provides Cisco IOS XE Software, that offers WAN, comprehensive security, wired and wireless access in a single, high-performance platform. This is highly suitable for small and medium enterprise branch offices. In addition, this model is an ISR 1100 4P Annex A Router with w/ LTE Adv, SMS/GPS LATAM and APAC.
| Product Description | Cisco Integrated Services Router 1117 - router - DSL modem - desktop |
| Device Type | Router - DSL modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Digital Signaling Protocol | ADSL2, VDSL2+ |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Encryption throughput: 250 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Features | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM) |
| Compliant Standards | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 32.3 cm x 23 cm x 4.2 cm |
| Weight | 2.59 kg |
| Manufacturer Warranty | 1-year warranty |
