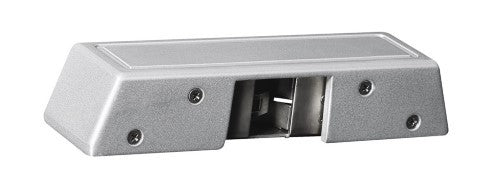

LOCKWOOD S1267A ES6000 Hook Lock Surface Mount Fail Safe Monitored 12/24VDC 5YR

(0 reviews)
SKU: DD-ES6000S-1-438.9Brand: TechKingdom
$580.00$627.00 Save 7%
or 4x $145.00 with Afterpay
Out of Stock
Buying in bulk? Get volume discounts on orders of 5+ units.
Free shipping on orders over $99
Estimated delivery: 2-5 business days
30-day hassle-free returns
Manufacturer warranty included

Key Specifications

  • ES6000 Hook Lock is suitable for swinging doors, and sliding doors and is easily attached to wood or steel door frame...
  • Voltage
  • Supply Voltage 12-30Vdc Ground (OV)
  • Current
  • 12Vdc - 250 mA after 1 sec. (initial current 830 mA)24Vdc - 140 mA after 1 sec. (initial current 530 mA)
  • Monitoring

ES6000 Hook Lock is suitable for swinging doors, and sliding doors and is easily attached to wood or steel door frames. ES6000 is heavy-duty designed with its high preload (side load) capability of up to 300 kg, a high holding force of up to 680 kg, and a up to 4-hour fire rating. Both Powers to Open and Power to Lock models are available. The ES6000 is available in both recess and surface-mounted versions. The ES6000 recess-mounted version is completed with an elegant satin stainless steel faceplate. The surface-mounted version is completed with a cast aluminum cover that can be supplied in a variety of colors to match existing door frames.



Voltage Supply Voltage 12-30Vdc Ground (OV)
Current 12Vdc - 250 mA after 1 sec. (initial current 830 mA)
24Vdc - 140 mA after 1 sec. (initial current 530 mA)
Monitoring Door locked (Solenoid) - Door Closed (Latch)
Strength (680kg) static strength rating
70 foot-lbs. dynamic strength rating
Endurance Internal Testing achieved: 2,000,000 cycles of operation
Pre-Load 660lbs (300kg) pre-load capability
Environment  Operational temperature range: -20°C to + 60°C
Lock Body Cast Aluminium Construction
Lock Bolt Solid Stainless Steel
Brand TechKingdom
Type N/A
SKU DD-ES6000S-1-438.9

Full specifications coming soon. Contact us for detailed product information.
