Description

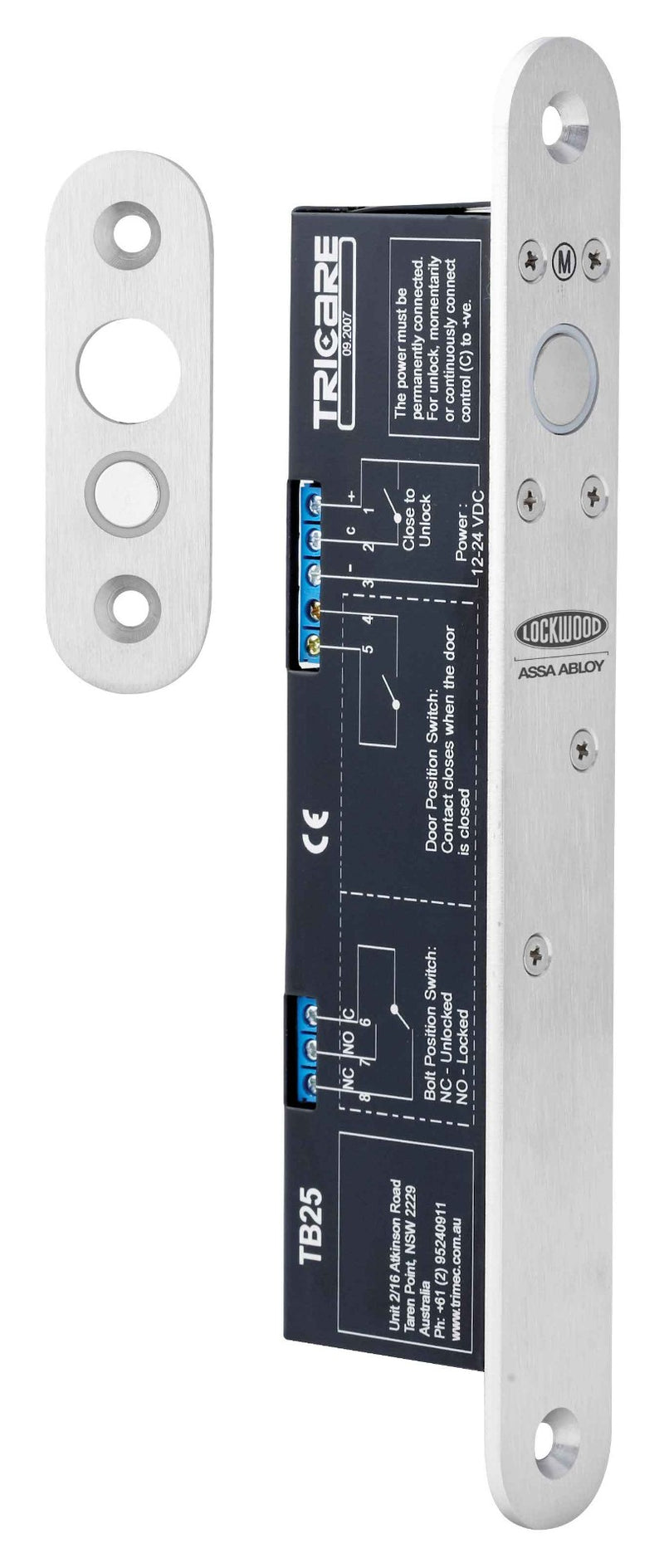

The TB25 drop bolt represents true engineering innovation, design excellence and the superior quality customers have come to expect and demand from Lockwood. Designed for use on swing-through, double-action doors, these drop bolts are ideal for applications where an electric strike is impractical.
- High Security. Bolt is deadlocked in the extended position
- Bolt position monitored
- Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)
- Multiple Orientation, drop bolts will work horizontally or vertically
- Power to Lock/ Power to Open
- Continuously Rated Solenoid
- Tamper Proof. The lock cannot be defeated by slipping a metal object between the lock and striker plate
- Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position
- Thermal Protection. In the event of solenoid overheating, a thermal fuse will operate, eliminating any fire risk
| Voltage | 12 to 24Vdc |
| Current (Start) | 1100mA @ 12Vdc, 1000mA @ 24Vdc |
| Current (Holding) | 210mA @ 12Vdc, 90mA @ 24Vdc |
| Holding Force | 1000kg |
| Locking Mode | Fail safe and fail secure |
| Bolt Length | 12.7 x 16mm |
| Faceplate Size | 10 x 25mm |
| Monitoring Contacts | Bolt & Door |
