Description

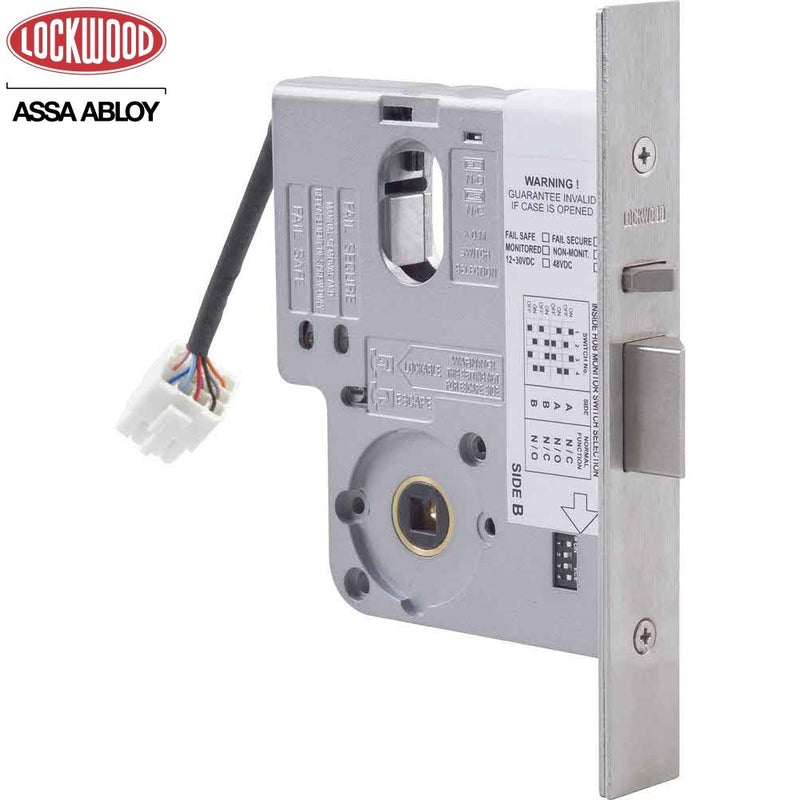

Designed and manufactured in Australia, the 3570 series electric mortice is a high-performance lock of superior quality. It is constructed from high-grade zinc alloy, with a stainless steel latch bolt and face plate, and is suited for all commercial applications.
The lock can be operated by push buttons, intercom systems, and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.
| Voltage | 12Vdc - 24Vdc Operating Voltage |
| Current | 500mA (max) 80mA holding @ 12Vdc 275mA (max) 50mA holding @ 24Vdc |
| LED Current | When LED's are fitted, add 15mA (max) to total current draw |
| Monitoring | Dual Key override • Deadlatched • Locked • Door closed • Request to exit • Microswitches: 500mA (max) @ 30Vdc each circuit. • Reed switch: 100mA (max) @ 30Vdc |
| Environment | Operational temperature range -20c to + 60c |
| Case/Cover | High purity Zinc alloy construction |
| Backset | 60mm standard, 89 & 127 mm available |
| Latch Bolts | Reversible with Stainless Steel construction. |
| Door Clearance | 3 - 6.5 mm |
| Door Thickness | Standard applications 32 to 50mm. |
| Cylinder | Standard Lockwood oval shaped cylinders. |
| Cabling | 1.6 metre length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm²) cable runs up to 30m. |
| Furniture | Compatible with Lockwood series door furniture. |
| Standard Finishes | Satin Chrome (SC) standard. |
