Description

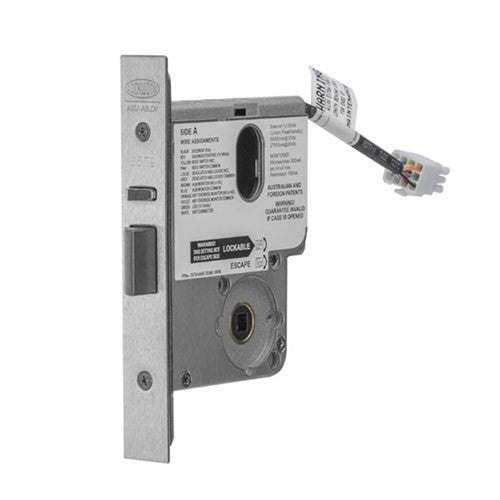

Lockwood 3579 series electric mortice lock. Less cylinder. Suitable for commercial applications.
The Lockwood 3579 is SCEC endorsed for secure area applications.
Monitoring includes dual key override, dead latching, door closed, door locked, request to exit, and reed switch.
The lock can be operated by push buttons, intercom systems, and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.
| Voltage | 12Vdc - 24Vdc Operating Voltage |
| Current | 500mA (max) 80mA holding @ 12Vdc 275mA (max) 50mA holding @ 24Vdc |
| LED Current | When LED's are fitted, add 15mA (max) to total current draw |
| Monitoring | • Dual Key override • Deadlatched • Locked • Door closed • Request to exit • Microswitches: 500mA (max) @ 30Vdc each circuit. • Reed switch: 100mA (max) @ 30Vdc |
| Environment | Operational temperature range -20c to + 60c |
| Case/Cover Plates | High purity zinc alloy material cases and stainless steel cover plates |
| Backset | 60mm standard backset. Extended backsets 89 and 127mm are available on application. |
| Latchbolts | Reversible with Stainless Steel construction |
| Door Clearance | 3 - 6.5mm |
| Door Thickness | Standard applications 32 to 50mm |
| Cylinder | Standard Lockwood oval-shaped cylinders |
| Cabling | 1.6 metre length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm²) cable runs up to 30m |
| Furniture | Compatible with Lockwood series door furniture |
| Standard Finishes | Satin Chrome (SC) Standard |
| Standards and Compliance | SL8 - Australian Lock Standard (AS4145.2.2008) (when used with equivalent security level keying system) D8 - (Durability) Australian Lock Standard (AS4145.2.2008) Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets) C-Tick Certified SCEC Endorsed for SL3 Medium Threat Level Areas |
