Description

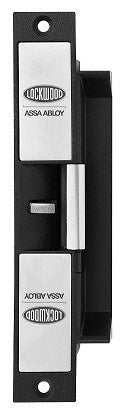

The ES2100 is the latest product to join the iconic Padde by Lockwood range of electric strikes. Tested in accordance with Australian standards this strike offers superior strength and is durability tested to 1.5 million operations. Standard features include variable voltage, patented field selectable fail safe/fail secure mode change, and a unique integrated door position switch.
Integrated Door Position Switch
The ES2100 now offers a unique new monitoring feature not available in other strikes on the market today. The strike has an integrated reed switch that when combined with a specialized Lockwood mortice lock, provides door position monitoring. The strike is supplied with a standard door magnet for use with cylindrical latches. Lockwood mortice locks and face plate accessories are sold separately
| Voltage | Variable 10 -30Vdc |
| Current | 200mA @12Vdc - 120mA @ 24Vdc |
| Solenoids | Rated for continuous use |
| Monitoring | Latch Strike locked Door position (reed switch) |
| Holding force | 1000kg static strength rating |
| Endurance | Cycle tested to 1.5 million operations |
| Latch | Suitable for 15mm latch bolt with 3mm door gap |
| Body | Stainless Steel |
| Keeper | Stainless Steel |
| Environment | Operational temperature range -20ºC to +60ºC |
