Description

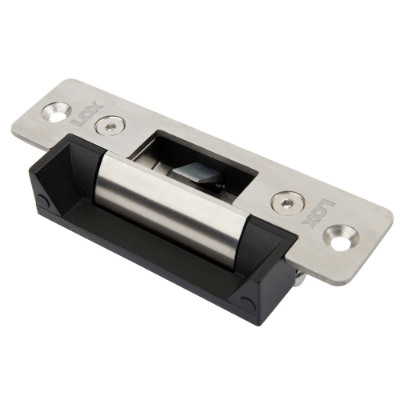

The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock.
The ES10 Series strikes are pre-drilled to accommodate for extension lips and have a holding strength of up to 1200kg. The monitored ES10M version comes with Door Status Sensor (door latch monitoring).
| ES10M | MONITORED VERSION OF THE ES10 NON WEATHER RESISTANT |
| HOLDING STRENGTH | UP TO 1000KG |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 200mA 24VDC = 100mA |
| APPROVALS | UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| DSS MONITORING | DOOR LATCH SENSOR, DOOR LATCH ENGAGED WITHIN STRIKE KEEPER ES10M VERSION |
| IP RATING | NOT WEATHER RESISTANT |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
