Description

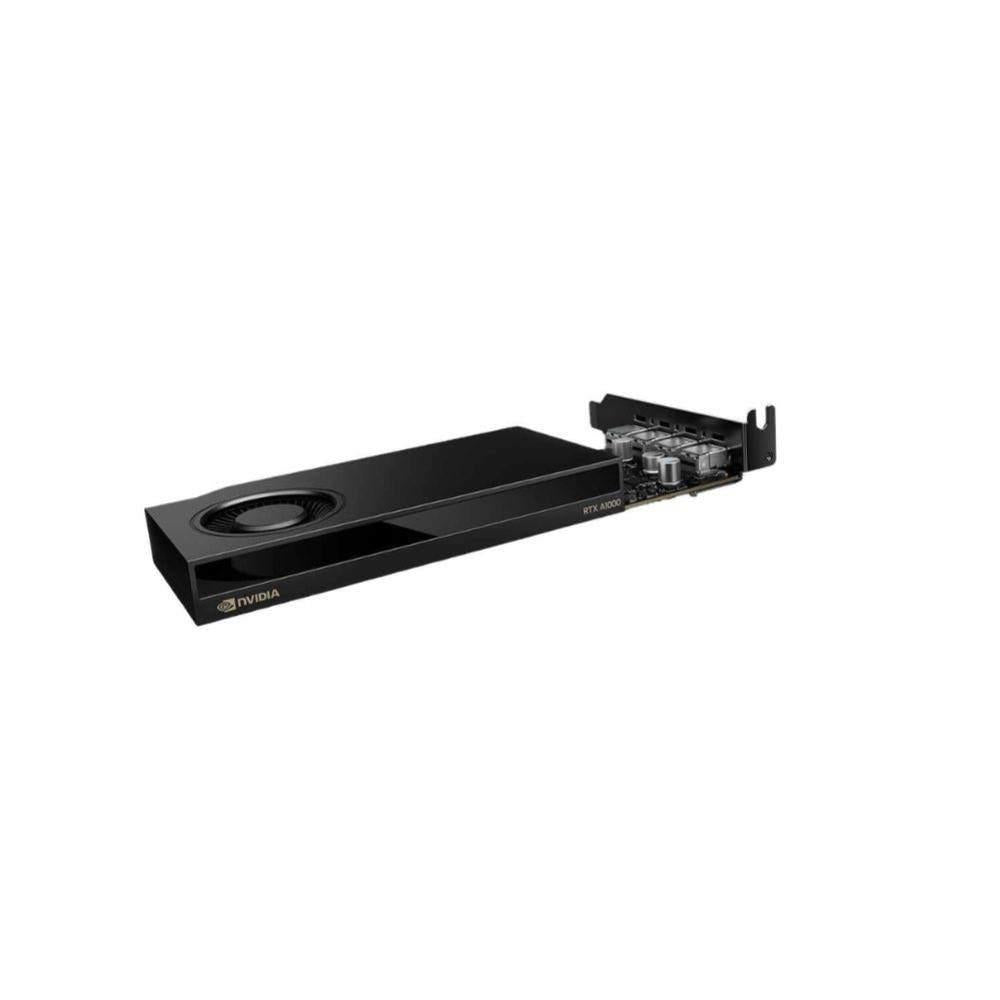

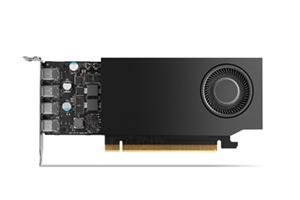

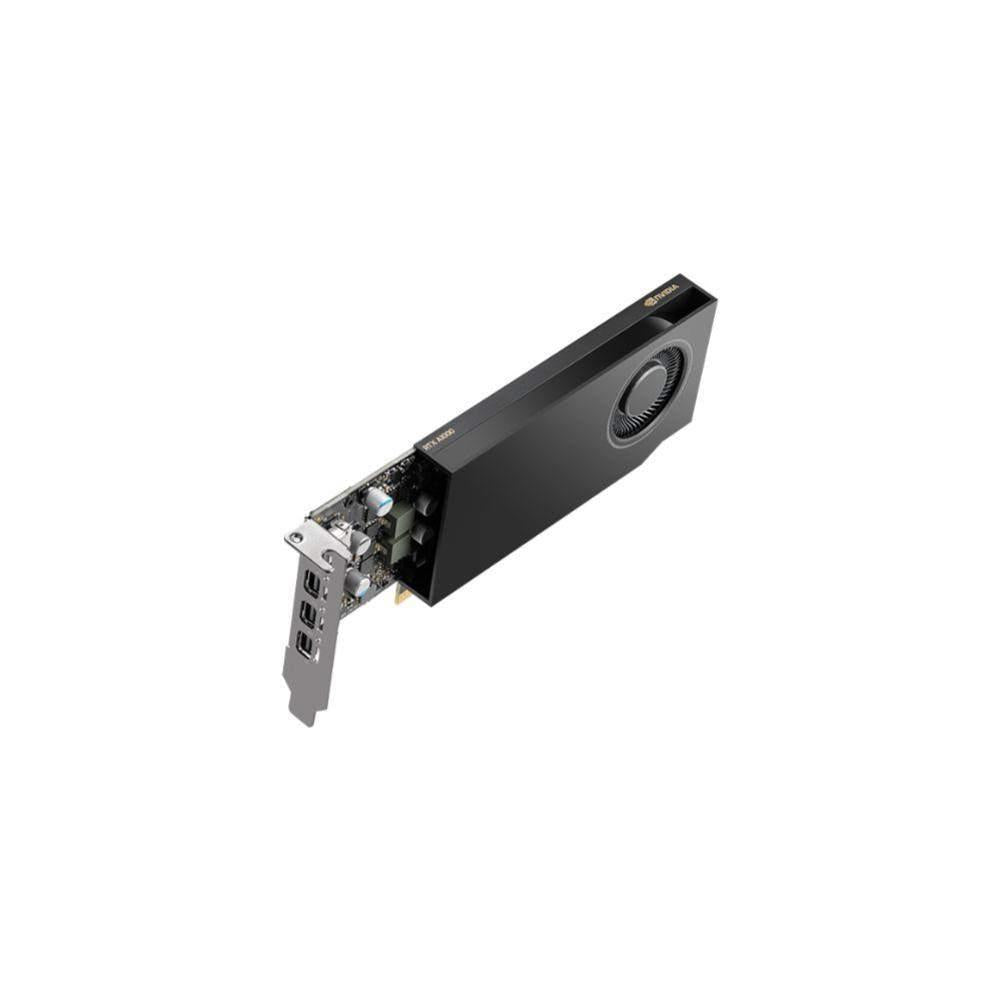

NVIDIA RTX A1000 is a powerful, compact professional GPU based on the NVIDIA Ampere architecture. Designed for real-time ray tracing and AI-accelerated workflows, it offers impressive performance with 2,304 CUDA cores, 72 Tensor cores, and 18 RT cores. Equipped with 8GB of GDDR6 memory and a 128-bit interface, this single-slot, low-profile card delivers high productivity and immersive visuals while fitting easily into space-constrained workstations.
Features:
- Powered by NVIDIA Ampere architecture for advanced AI and ray tracing performance
- 2,304 CUDA cores, 72 third-generation Tensor cores, 18 second-generation RT cores
- 8GB GDDR6 memory with 128-bit interface and 192 GB/s bandwidth
- Compact single-slot form factor ideal for small workstations
- Active cooling for reliable thermal management
- Supports up to four simultaneous displays with 4x Mini DisplayPort 1.4a
- Supports 4K, 5K, and 8K resolution outputs at various refresh rates
- Encode and decode engines with AV1 decode support
- Compatible with DirectX 12, OpenGL 4.6, Vulkan 1.3, CUDA 11.6, and OpenCL 3.0
Specifications:
| Model | NVIDIA RTX A1000 |
| GPU Memory | 8GB GDDR6 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 192 GB/s |
| CUDA Cores | 2,304 |
| Tensor Cores | 72 |
| RT Cores | 18 |
| Single-Precision Performance | 6.7 TFLOPS |
| RT Core Performance | 13.2 TFLOPS |
| Tensor Performance | 53.8 TFLOPS |
| Display Ports | 4x Mini DisplayPort 1.4a |
| Max Displays Supported | 4x 4096 x 2160 @ 120 Hz 4x 5120 x 2880 @ 60 Hz 2x 7680 x 4320 @ 30 Hz |
| Encode/Decode Engines | 1x encode, 2x decode with AV1 decode support |
| Interface | PCIe 4.0 x8 |
| Power Consumption | 50 W |
| Cooling | Active |
| Form Factor | 2.7" H x 6.4" L, Single Slot |
| VR Ready | No |
| vGPU Support | No |
| Error-Correcting Code (ECC) | None |
| Supported APIs | DirectX 12 (Shader Model 6.6), OpenGL 4.6, Vulkan 1.3, CUDA 11.6, OpenCL 3.0, DirectCompute |
| Warranty | 3 years |
Enhance your workstation with the compact, high-performance NVIDIA RTX A1000 GPU for professional-grade AI and ray tracing workflows.
