Description

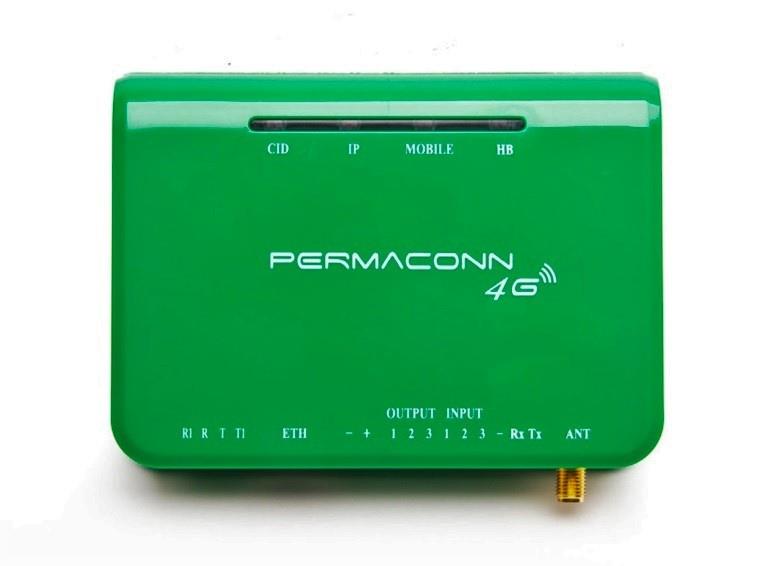

The Permaconn PM45-4G Dual SIM 4G/3G IP Communicator provides a reliable and secure communication link between supervised premises and the central station. Designed for seamless integration with Contact ID alarm panels, this versatile communicator ensures constant connectivity via IP, 4G, or 3G, automatically switching between networks to maintain uninterrupted reporting. It’s perfect for both residential and commercial applications, offering features like remote alarm panel programming, AES128 encryption, and easy integration with alarm systems.
Key Features
- Dual SIM + IP Communication: Provides a primary IP path with fallback to 4G/3G in case of failure.
- Remote Programming: Over-the-air programming for alarm panels via 4G/3G or IP paths.
- Plug & Play: Easy installation without the need for complex configurations.
- Compatibility: Works with any Contact ID alarm panel for seamless integration.
- Function Control: 3 inputs and 3 outputs that can control alarm systems, gates, and lights using the Atlas or Pocket Secure app.
- Automatic Network Switching: Automatically switches between 4G and 3G for uninterrupted connectivity.
- Low Power Consumption: Efficient power usage, drawing only 0.08A on standby and 0.19A while transmitting.
- Secure Transmission: AES128 encryption ensures secure data transmission over public internet connections.
- VPN Secure Connection: Secure VPN within Optus & Telstra networks dedicated solely for Permaconn events.
- Easy Diagnostics: Various diagnostic LEDs for simple installation and troubleshooting.
Additional Features
- Compact Size: Fits easily inside alarm panel enclosures, ideal for ATM and M2M applications.
- High-Speed RS232 Interface: Future-proof for additional developments.
- Seamless IP Configuration: Automatically acquires an IP address using the customer’s DHCP service, with no IT headaches.
- Reliable Communication Paths: Three dedicated communication paths, ensuring over 99.9% uptime.
- Watchdog Reset: Internal function to avoid unnecessary service calls.
- Compliance: Compliant with AS2201.5:2008 standards and other international certifications.
Specifications
| Brand | Permaconn |
| Model | PM45-4G |
| Housing Material | ABS plastic (Green) |
| Dimensions | 110mm (h) x 25mm (d) x 80mm (w) |
| Weight | 120g |
| Operating Temperature | 0°C - 50°C |
| Operating Humidity | 15% to 85% (non-condensing) |
| Power Supply | 8-15V DC |
| Power Consumption | Standby: 0.08A @13.8V DC, Transmitting: 0.19A @13.8V DC |
| Communication Protocol | Ethernet (10/100BASE-T) |
| Network Protocol | DHCP or Static IP |
| Serial Port | High-speed RS232 |
| Auxiliary Input | 3 x 24Hr input (EOL 3.3K) |
| Auxiliary Output | 3 x Open Collector output @ 50mA (max) |
| Data Security | AES Encryption |
Certifications
- EN 55022:2006/A1:2007
- AS/CA S042.1-2011
- AES2201.5:2008
- EN 62311:2008
- EN 301 489-1
- EN 301 489-24
- EN 301 908-1
- EN60950-1
What's Included
- Permaconn PM45-4G Dual SIM 4G/3G IP Communicator
- Installation Guide
Warranty: 2 years
