Description

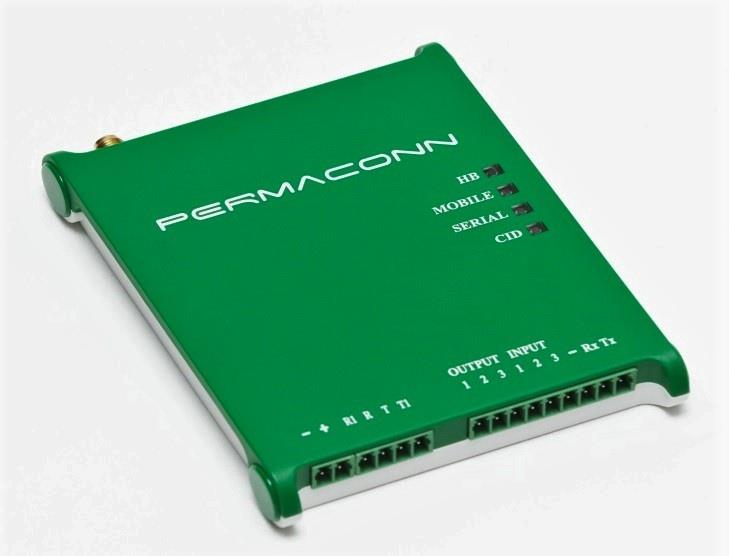

The Permaconn PM24 is Australia’s smallest and most cost-effective single SIM communicator, designed for seamless integration with Contact ID enabled alarm panels. Built on Cat M1 IoT technology via the Telstra 4GX network, the PM24 delivers secure, reliable alarm communications with enhanced coverage, reduced power consumption, and smartphone control. It's ideal for residential, commercial, ATM, and machine-to-machine (M2M) applications.
Key Features
- Innovative connectivity: Utilizes the latest Cat M1 network, optimized for IoT and machine-to-machine communication.
- Superior signal performance: Offers 20% deeper building penetration and longer range than traditional systems.
- Power efficient: Consumes minimal power and is easily powered by the alarm panel.
- No drilling required: Magnetic attachment for easy, non-intrusive installation.
- Smartphone integration: Compatible with Pocket Secure and Atlas apps for remote access and control.
Additional Features
- Compact design: Small enough to fit inside the alarm panel; perfect for ATMs and M2M use.
- Secure networking: VPN within Telstra’s infrastructure ensures dedicated, encrypted communication.
- End-to-end security: AES128 encryption safeguards all transmitted alarm data.
- Simple installation: LED indicators and remote diagnostics via Atlas portal make setup and maintenance easy.
- Remote control capabilities: Outputs can be configured to control gates, lights, and arming/disarming via smartphone app.
- Self-healing system: Internal watchdog reset prevents downtime or unnecessary service visits.
- Dialler lead monitoring: Ensures reliable communication from the alarm panel to Permaconn.
Specifications
| Brand | Permaconn |
| Model | PM24 (S117283) |
| SIM Type | Single SIM |
| Network | Cat M1 (LTE FDD B3/B28) |
| Modem | Quectel BG96 |
| Power Supply | 8–15V DC |
| Power Usage | Standby: 0.04A @13.8V Transmitting: 0.19A @13.8V |
| Inputs | 3x 24hr monitored inputs (EOL 3.3K) |
| Outputs | 3x Open collector outputs @ 50mA max |
| Dimensions | 108mm (H) x 80mm (W) x 15.5mm (D) |
| Weight | 80g |
| Housing Material | ABS plastic - Green |
| Mounting | Magnetic (no drilling or screws) |
| Data Security | AES128 Encryption |
| Control Options | Atlas Web Portal / Pocket Secure App |
Approvals & Standards
- EN62311:2008
- AS/NZS 2772.2:2016
- AS/NZS 60950.1:2015
- EN 55032:2015
- EN 55024:2010+A1:2015
- EN 61000-3-2:2014
- EN 61000-3-3:2013
- EN 62479:2010
- EN 60950-1:2006+A11+A1+A12+A2
- Various ETSI compliance standards
