Description

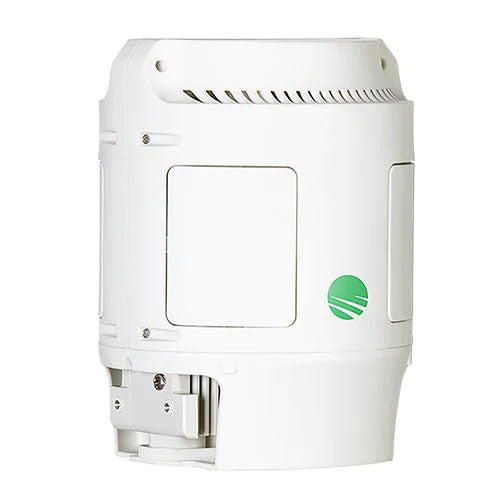

The MultiHaul[tm] TG system marks the release of Siklu's 3rd generation point to multipoint 60GHz products, with Terragraph certification. The solution consists of Nodes operating over millimeter waves in a redundant mesh topology that connects a suite of Terminal Units (TU). The MultiHaul[tm] TG family of products brings the advantages of mmWave spectrum - multi-gigabit capacity, immunity to interference, and massive amounts of the available spectrum - to an easy-to-deploy solution with the addition of L2 SDN mesh, enabled by Siklu's SmartHaul[tm] Runner application, for stress-free coverage extension and multi-path reliability. MultiHaul[tm] TG Node, N366, is the ideal solution for scalable deployments across neighborhoods and business environments.
• Topologies: Point to Point, Point to Multi-point, Self-Backhaul L2 SDN Mesh
• Sector(s): Up to 4x 90° sector, for 360° coverage, Horizontal scanning: 90° per sector, Vertical scanning: 50°
• Frequency & Duplexing: 57-66GHz, TDD/TDMA
• Network synchronization: On-board GPS
• Channels & Width: 4x non-overlapping channels, 2160MHz wide, Any sector any of 4 channels, for optimal RF performance
• Modulation & Coding: 10 levels of adaptive coding and modulation
• Radio OTA Rate (over the air): Up to 4,600 Mbps per sector
• Aggregate Throughput: Greater than 3800 Mbps per sector, Greater than 15Gbps per node
• System Gain (link budget): 110dB (Node to Node/TU, including antenna gain)
• Typical Reach (Node to Node/TU): 1000ft. / 300m
• Interfaces: 3 ports: 1x RJ-45 10/5/2.5/1GbE with PoE-In, 1x RJ-45 1GbE with PoE-Out (35W), 1x SFP+ 10GbE
| Product Type | Radio |
| Frequency & Duplexing | 57-66GHz, TDD/TDMA, 4 channels |
| Sector(s) | 4x 90° sector, for 360° coverage, any sector on any channel. Horizontal scanning: 90° per sector, Vertical scanning: 50° |
| Interfaces(three) | 1x RJ-45 10/5/2.5/1GbE with PoE-In, 1x RJ-45 1GbEwith PoE-Out (35W), 1x SFP+ 10GbE |
| Environmental | IP67 |
| Operating Temperature | -45° - +55°C |
