Description

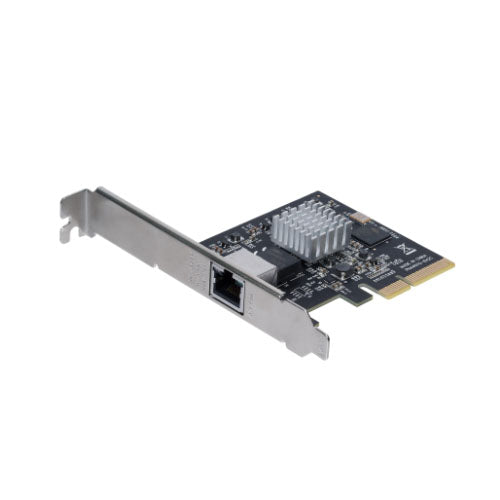

The Startech ST10GSPEXNB is designed for low-power, single-port network applications, the PCIe NIC offers a cost-effective and versatile networking solution by providing additional bandwidth to meet your network needs, without having to overhaul your infrastructure wiring. Fully compliant with 10GBase-T and NBASE-T™ specifications, the network card lets you add an Ethernet port to your server or high-powered workstation through a PCI Express x4 (or higher) slot. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)
• Cost-effective and versatile Ethernet connectivity supporting five network speeds: 10G, 5G, 2.5G 1G and 100Mbps
• Compliant with 10GBase-T and NBASE-T specifications
• IEEE 802.3az compliant energy-efficient chipset
• Virtualization (Microsoft Hyper-V®) and iSCSI support
• PCIe 2.0 x4 interface
• Supports 2.5 and 5Gbps network speeds on Cat5e cabling and 10Gbps on Cat6a
• Up to 9K jumbo frame support
• Supports 802.1q VLAN Tagging
• Full-duplex support
• Supports Auto-MDIX
• Supports Checksum Offload (IP, TCP, UDP) and Large Send Offload
• Configured with a standard profile bracket, includes a low profile/half-height bracket
| Product Description | StarTech.com 1 Port PCI Express 10GBase-T / NBASE-T Ethernet Network Card - 5-Speed Network Support: 10G/5G/2.5G/1G/100Mbps - PCIe 2.0 x4 (ST10GSPEXNB) - network adapter - PCIe 2.0 x4 - 1000Base-T x 1 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Ports | 1000Base-T x 1 |
| Dimensions (WxDxH) | 2.1 cm x 8.3 cm x 12 cm |
| Weight | 100 g |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T |
| Data Link Protocol | 100Mb LAN, GigE, 10 GigE, 5 GigE, 2.5 GigE |
| Data Transfer Rate | 10 Gbps |
| Processor | Tehuti / Aquantia TN4010 / AQR105 |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3an |
| Colour | Black |
| System Requirements | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, VMware ESXi 5.1, VMware ESXi 5.0, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, VMware ESXi 6.0, VMware ESXi 6.5, Microsoft Windows Server 2019, Linux 3.x - 4.14 LTS versions only, Apple macOS 10.12 - 10.14 |
| Manufacturer Warranty | 2-year warranty |
