Description

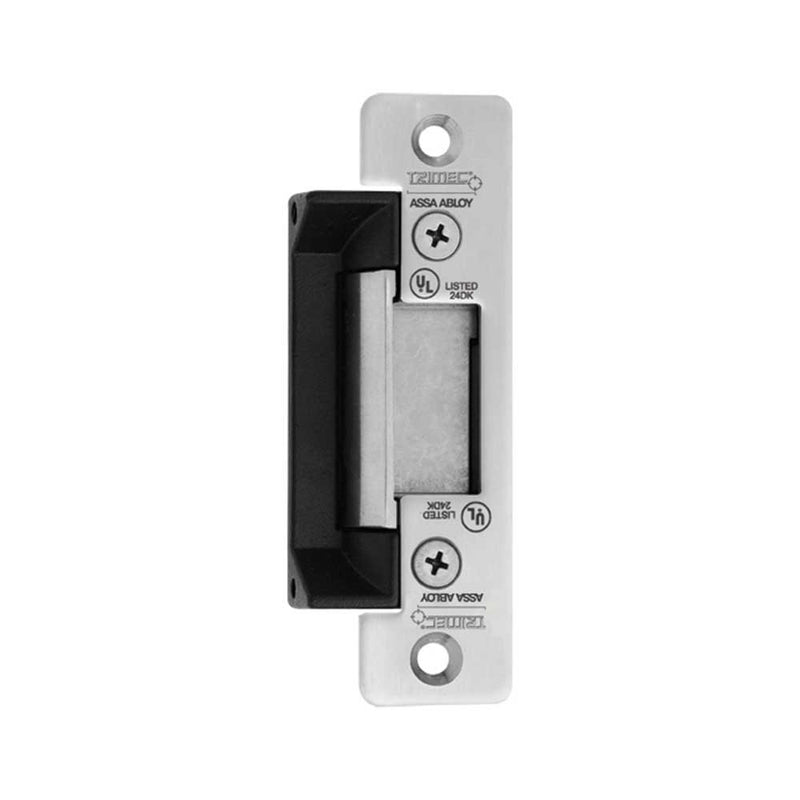

The TRIMEC ES110 is a cost-efficient robust electric strike with a solid construction of a one-piece cast aluminum body and stainless steel striker. Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.
Extension lips are available to accommodate the installation of electric strikes on door frames of different thicknesses. The ES110 product range of patented electric strikes is suitable for use with all access control installations where flexibility, security, and lower cost are required.
- All models IP56 Weather resistant
- Fail safe/fail securely changeable on site
- Stainless steel striker for extra strength and durability
- Stainless steel locking pins
- Multi-Voltage 12Vdc & 24Vdc
- Optional mounting kit
- Installation template
- Suitable For 18mm latch with a 3mm door gap
- TRICARE® 5 Year Warranty
| Voltage | 12Vdc & 24Vdc |
| Current | 250 mA @ 12Vdc – 125mA @ 24Vdc |
| Solenoid | Solenoids are rated for continuous use |
| Monitoring | None |
| Holding Force | 680 kg Static Strength Rating |
| Endurance | Cycle tested to 1,000,000 operations |
| Body | Cast Aluminium Construction |
| Keeper | Stainless Steel |
| Latch | Suitable for 15mm latchbolt with 3mm door gap |
