Description

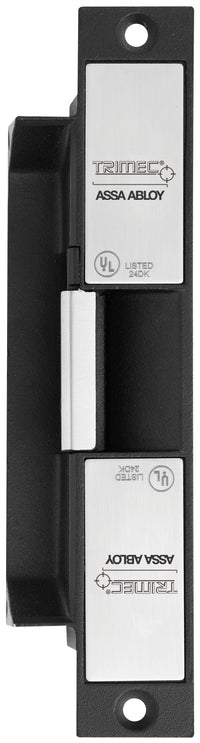

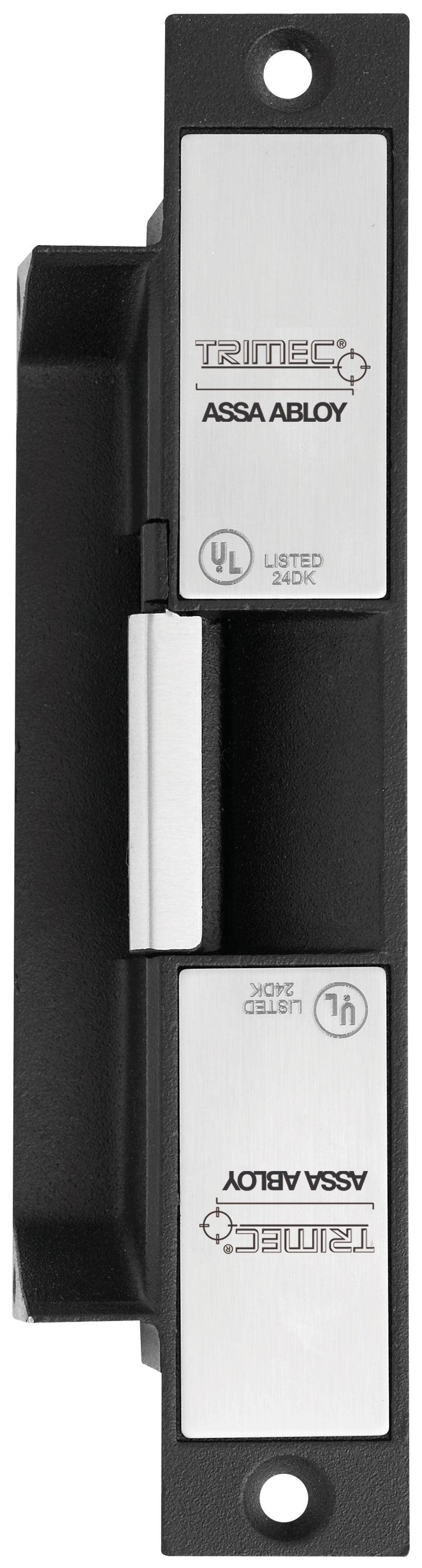

The ES200 series electric strikes are high-security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right-hand side of the door, and are available in 12 or 24Vdc
| Voltage | 12 or 24Vdc |
| Current | 175 mA @ 12Vdc - 88 mA @ 24Vdc |
| Solenoid | Solenoids are rated for continuous use. |
| Monitoring | None |
| Holding Force | 850kg Static Strength Rating |
| Endurance | Cycle tested to 1,000,000 operations |
| Latch | Suitable for 15mm latch bolt with 3mm door gap |
| Environment | Operational temperature range -20°C to +60°C |
| Body | Solid Stainless Steel Construction |
| Keeper | Stainless Steel |
