Description

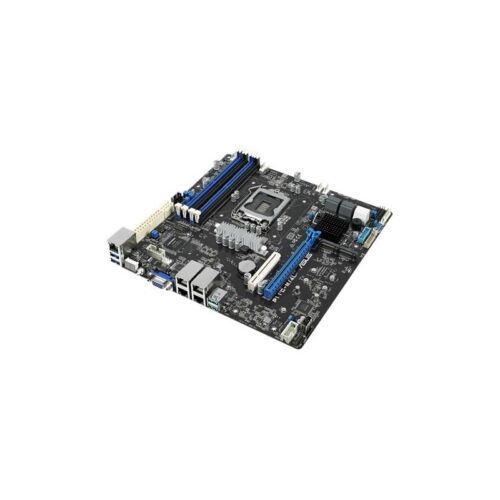

P11C-M/4L is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering quad server-class Intel® Ethernet and flexible expandability with dual M.2, six SATA 6G, and two PCIe. The 9.6” x 9.6” micro ATX form factor can be easily integrated into short-depth chassis to greatly increase rack compute density.
The layout is a rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
| Chipset | C242 |
| Format | uATX |
| Size | 9.6" x 9.6" |
| Expansion slots # | 2 |
| CPU socket | LGA1151 |
| CPU family | Intel Xeon E-2100/E-2200 LGA1151 |
| Max. CPU # | 1 |
| Max. memory size support | 64 GB |
| Memory sockets # | 4 |
| Memory correction support | EC |
| Memory size type support | DIMM |
| Memory type support | DDR4 |
| Network | 4 x Intel I210AT + 1 x Mgmt LAN |
