Description

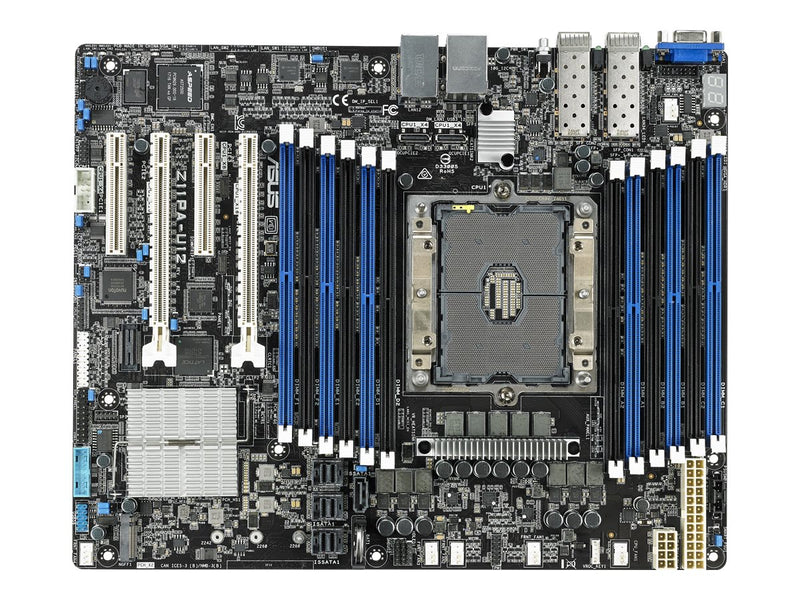

The Asus LGA 3647 C622 DDR4 EG DIMM ATX Motherboard Z11PA-U12/10G-2S is a scalable server motherboard with high-speed networking. It is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generation processors. Z11PA-U12/10G-2S offers breakthrough performance with the latest Intel Optane™ DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. Featuring the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, Z11PA-U12/10G-2S achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform.
• Powerful performance with the latest 2nd Gen Intel Xeon Scalable processors and ECC memory
• High-speed networking with dual Intel® 10G LAN
• Unmatched memory expandability with 12 DIMM slots
• Dual OCuLink for efficient connections to NVMe devices
• Connect up to 13 SATA 6Gb/s storage devices
• Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC)
• Quick initialization guidance for faster BIOS tracking enhancement
| Product Description | ASUS Z11PA-U12/10G-2S - motherboard - ATX - Socket P - C622 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel C622 |
| Processor Socket | 1 x Socket P |
| Compatible Processors | Xeon |
| Max RAM Size | 1536 GB |
| RAM Supported | 12 DIMM slots - DDR4 registered, Load-Reduced, 3DS Load-Reduced |
| Storage Ports | 13 x SATA-600 (RAID), 2 x NVMe port, 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2500 |
| Dedicated Video Memory | 64 MB |
| LAN | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
